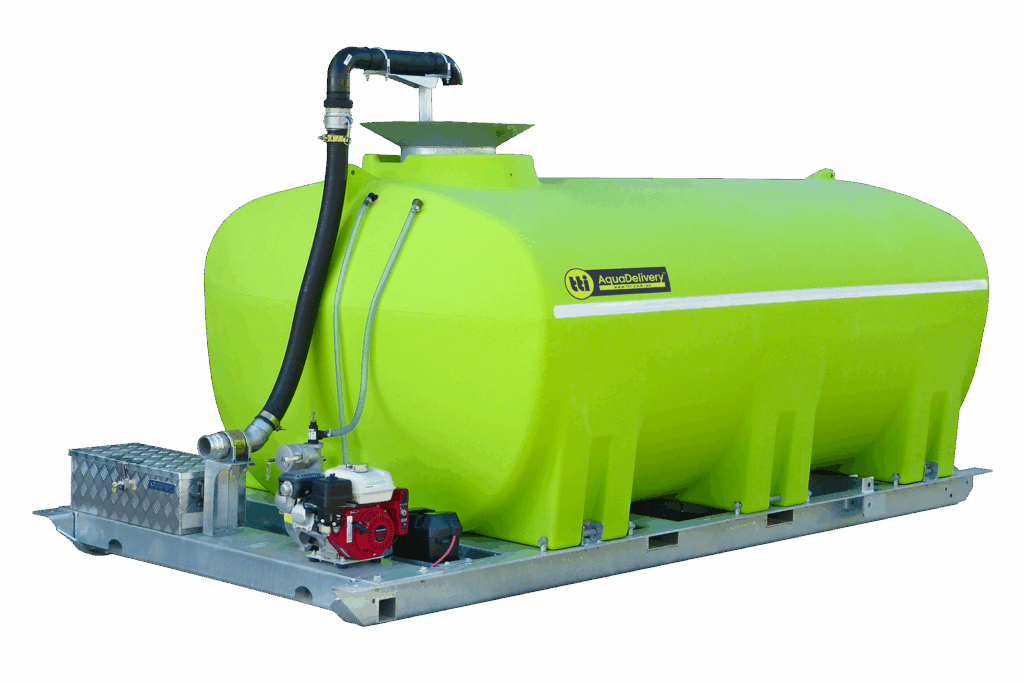

8,000L Water Delivery ModuleChassis Mount Water Delivery Module
AquaDelivery™ | Premium Water Delivery Units For your Tipper Or Flatbed
The AquaDelivery™ units are designed for water transfer applications such as domestic, agricultural or industrial water delivery. Turn your existing tipper or truck into a water delivery truck when needed, with the convenience of a forklift-able steel frame, with provision for self-loading legs.
Why 8,000L Water Delivery Module
- LiquidLocker™ baffling standard — reduces sway & rollover risk
- Full 360° spray coverage with front, rear & side options
- Wet tested before dispatch — pump, spray & electrical certified
Heavy-Duty Poly Tank
Thick & tough poly tank complete with a 25 Year Warranty
Honda Motor (Electric Start)
Honda GX200 with 1000L/min 3″Aussie QP303 water transfer pump
Hot Dip Galvanised Chassis Frame
Engineer approved chassis frame with mounting kit
Hydrant Filler Lid System
Fitted with a 3″ hydrant fill lid plumbed down to a Spring non-return valve
Suction Hose Storage
Hose Storage between chassis rails - 2x 5m lengths, 3"
3" Steel Manifold Pipework
Hot dip galvanised. 3" dedicated suction and discharge ports with camlock fittings
Rear Bumper Taillight
Rear bumper incorporating a taillight board with LED tail and number plate lights
Yanmar Diesel Engine 4.8hp
Hydraulic Drive Pump 1600L/min
LiquidLocker™ - ⌀380mm Anti-Surge Baffling Safety System
Poly Hose Reel - with 36m x 19mm Fire Hose
Container-Mount Frame
Hooklift Frame
- Tank
- 8,000L UV-stabilised poly — rustproof, corrosion-resistant, 25-year warranty
- Pipework
- 3" Steel Manifold Pipework, hot dip galvanised. 3" dedicated suction and discharge ports with camlock fittings
- Drive Options
- Honda 6.5HP - Petrol or Yanmar 10HP - Diesel Engine, both with Electric Start
- Fill System
- Hydrant Fill System with regulation air-gap, 3" one-way valve connection point
- Pump
- 1000L/min 3” Aussie QP303 water transfer pump
- Suction Hose
- 2x 5m lengths, 3" Suction hose — stored between chassis rails
- Chassis Frame
- Hot Dip Galvanised Chassis Frame - Engineer Approved Chassis Frame with mounting kit
- Lighting
- Rear bumper incorporating a taillight board with LED tail and number plate lights
The AquaDelivery™ unit can be used for tree watering and equipment washdown. It suits a range of water transfer tasks beyond basic cartage.
The Safety Baffle Ball System reduces water movement during transport. This improves vehicle stability, especially on uneven ground.
The AquaDelivery™ unit can hold non-potable water. It is not fully drainable. It is not recommended for chemical storage. Fully drainable tanks are better suited to chemical use.
Check the oil level regularly. Clean or replace the air filter as required. Inspect the spark plug at service intervals. Always follow the Honda engine manual.
The unit is supplied with an Aussie QP303 pump. Other pumps may be fitted if they meet the required flow and pressure specifications. Confirm compatibility before making changes.
