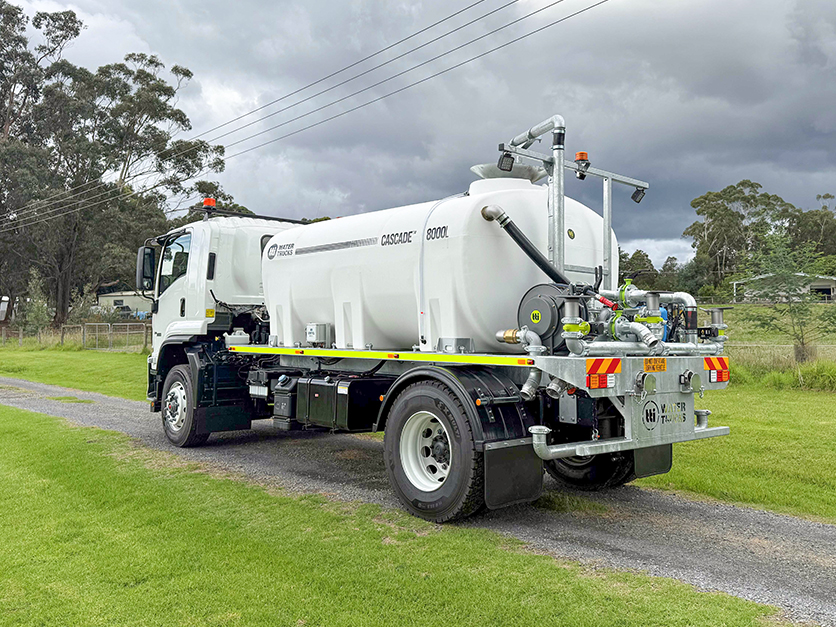

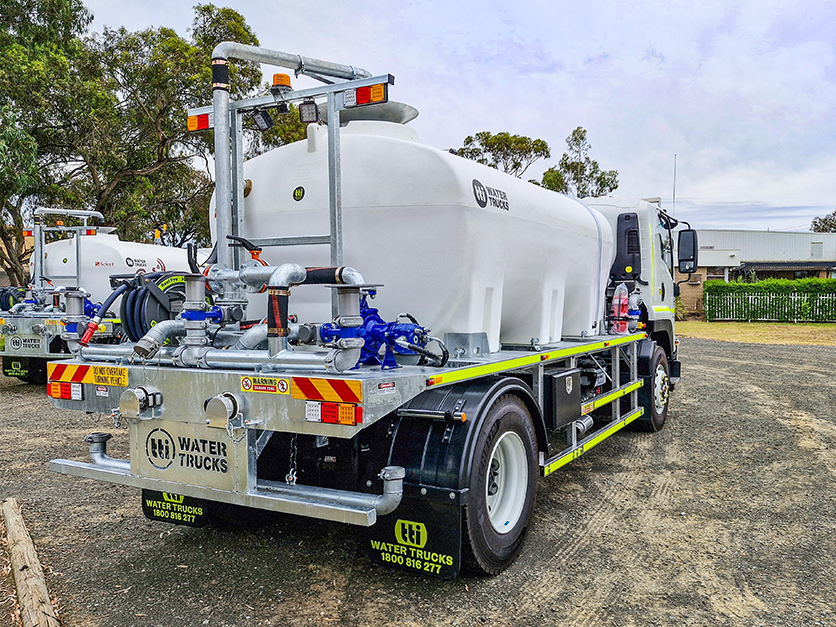

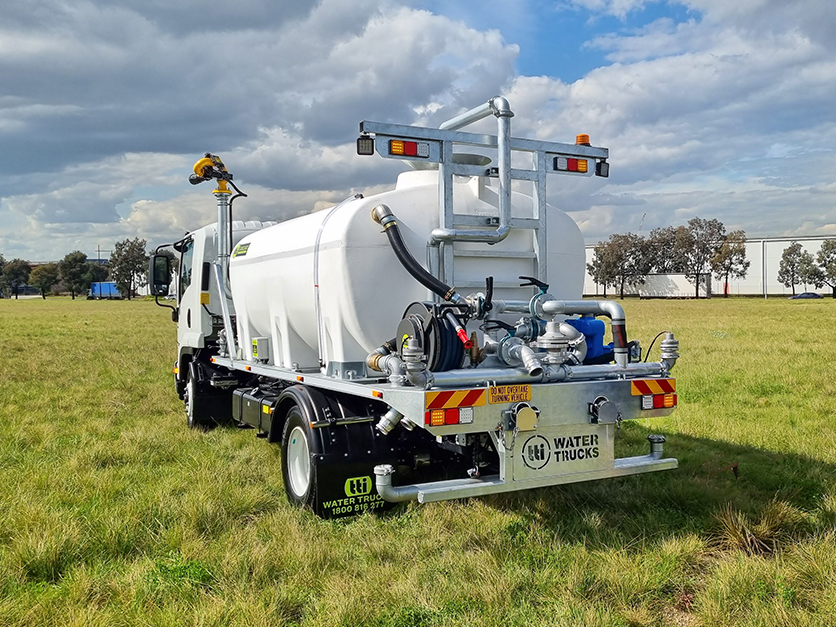

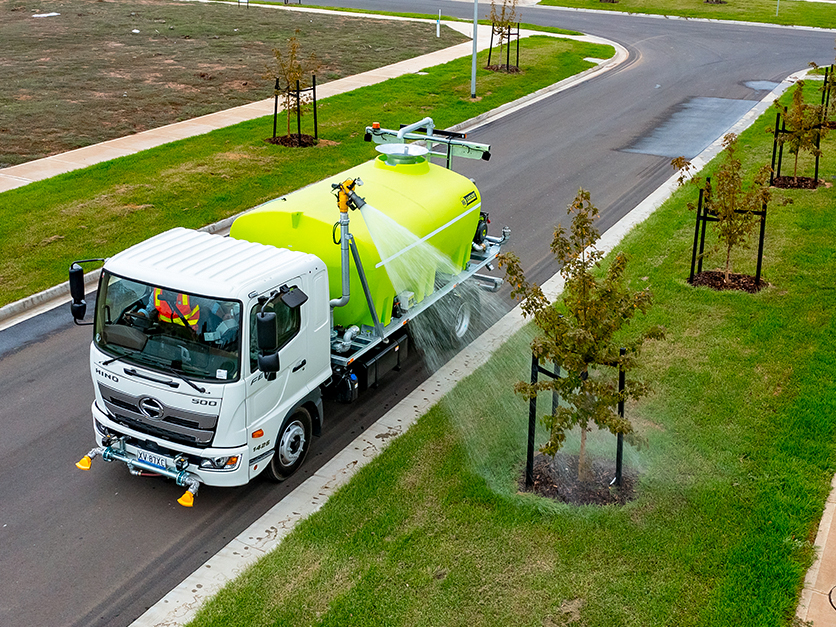

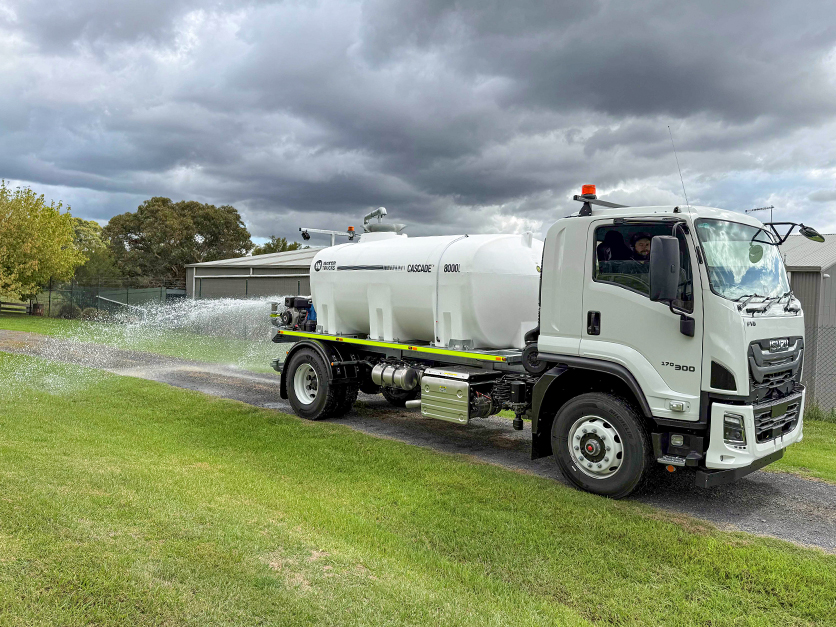

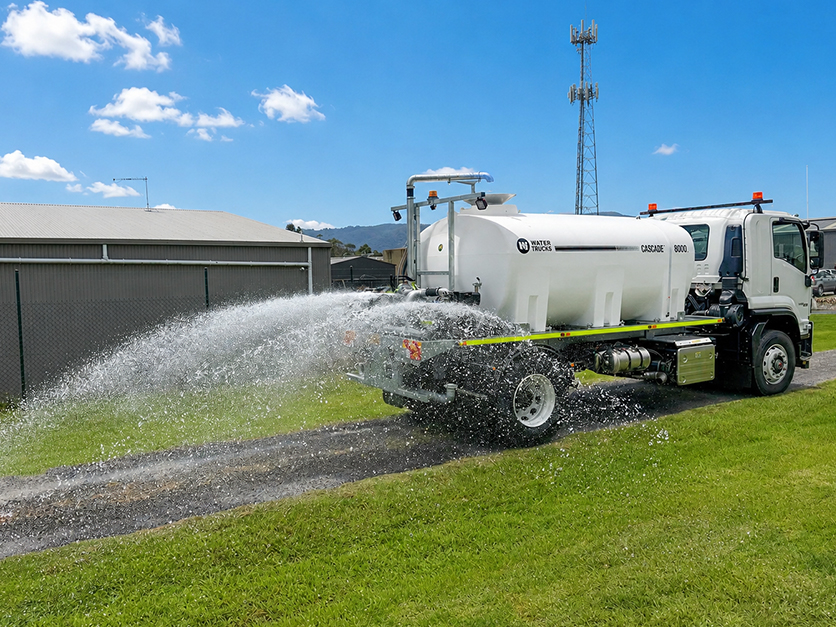

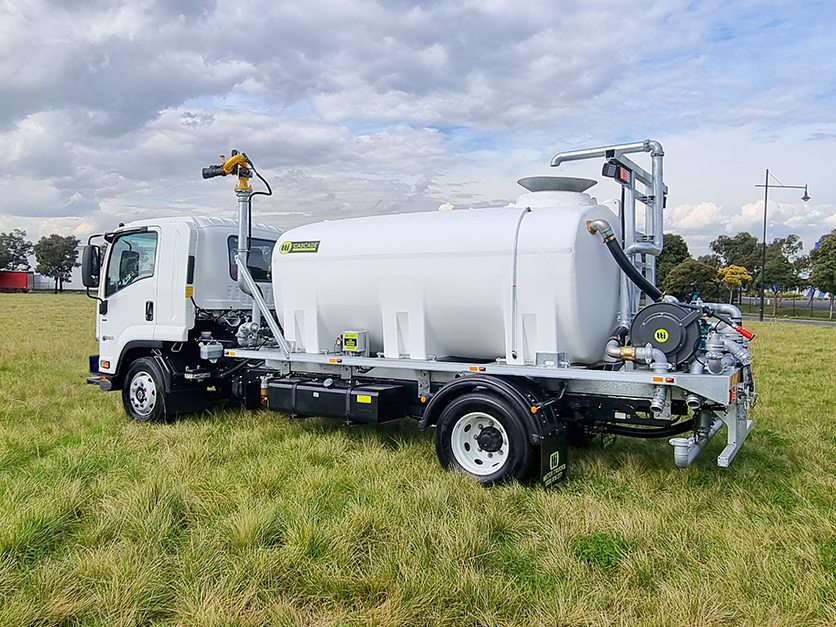

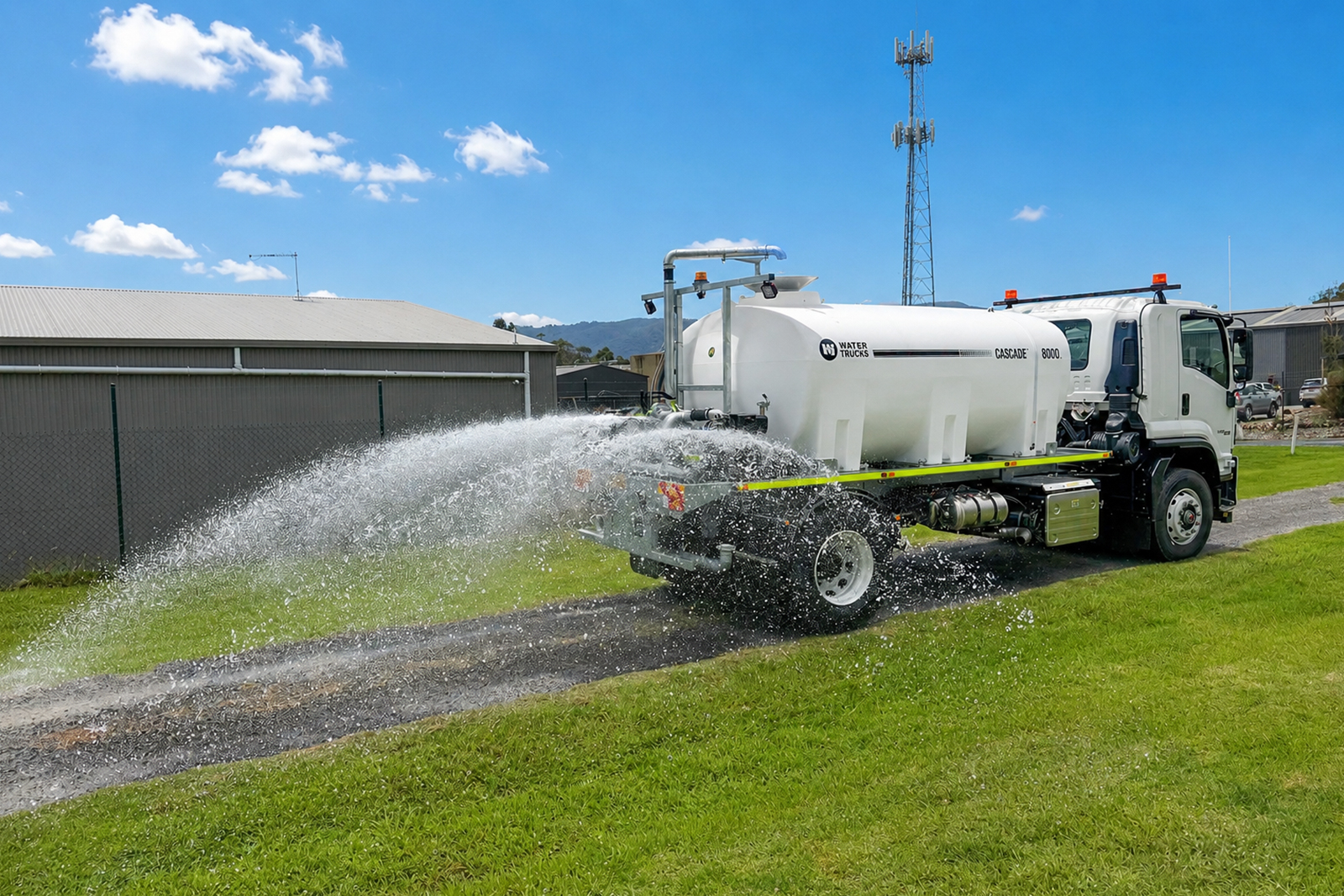

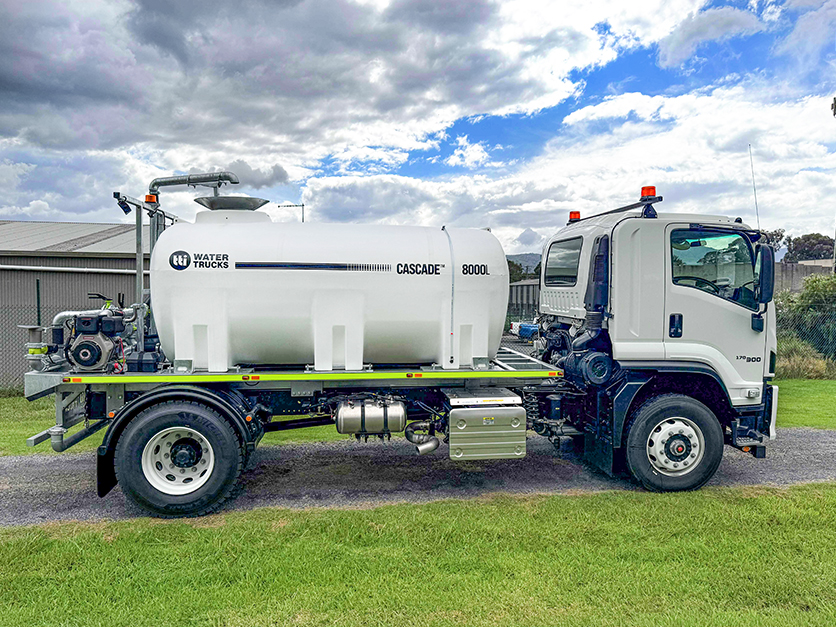

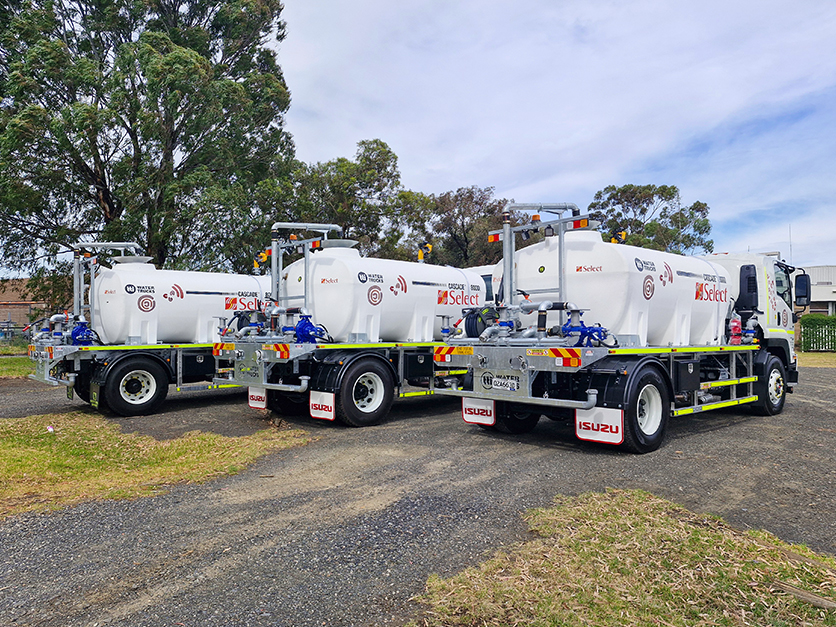

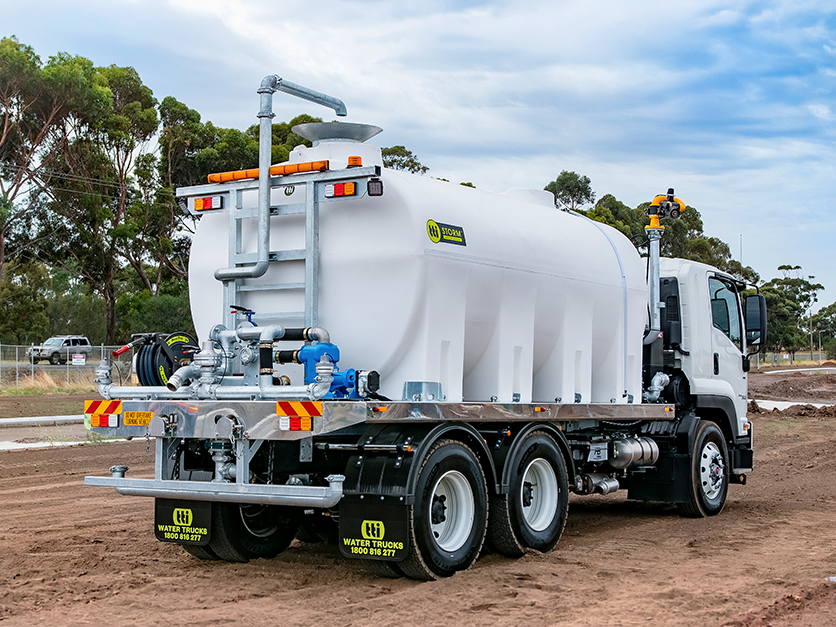

Cascade™ 8,000L Water TruckThe Ultimate Compact Water Truck
SKU: STM-8000L-4x2 · 4x2 Cab-Chassis
Australia’s most trusted large-capacity water truck — engineered for civil construction, mining, council and hire operations. Every unit is manufactured in-house and wet tested before leaving the factory.
Why Cascade™ 8,000L Water Truck
- LiquidLocker™ baffling standard — reduces sway & rollover risk

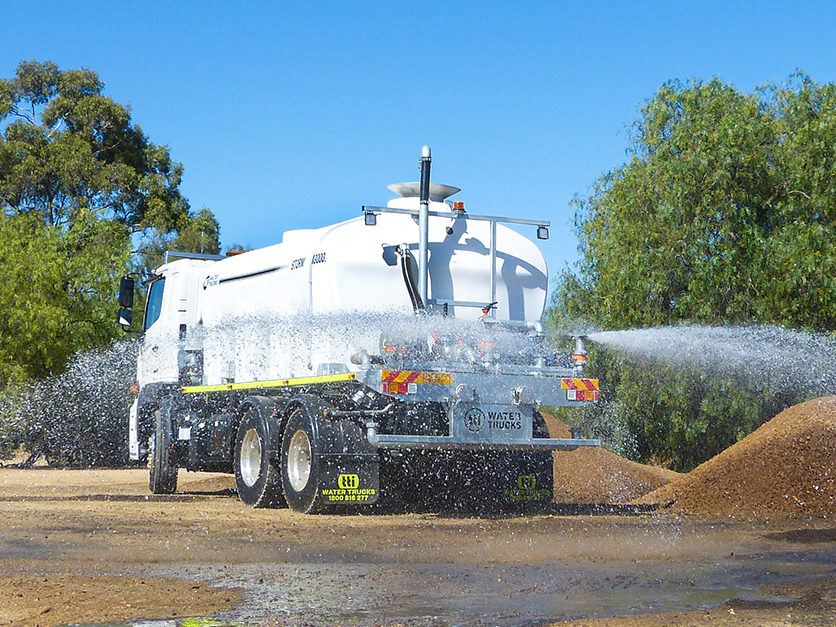

- Full 360° spray coverage with front, rear & side options
- Wet tested before dispatch — pump, spray & electrical certified

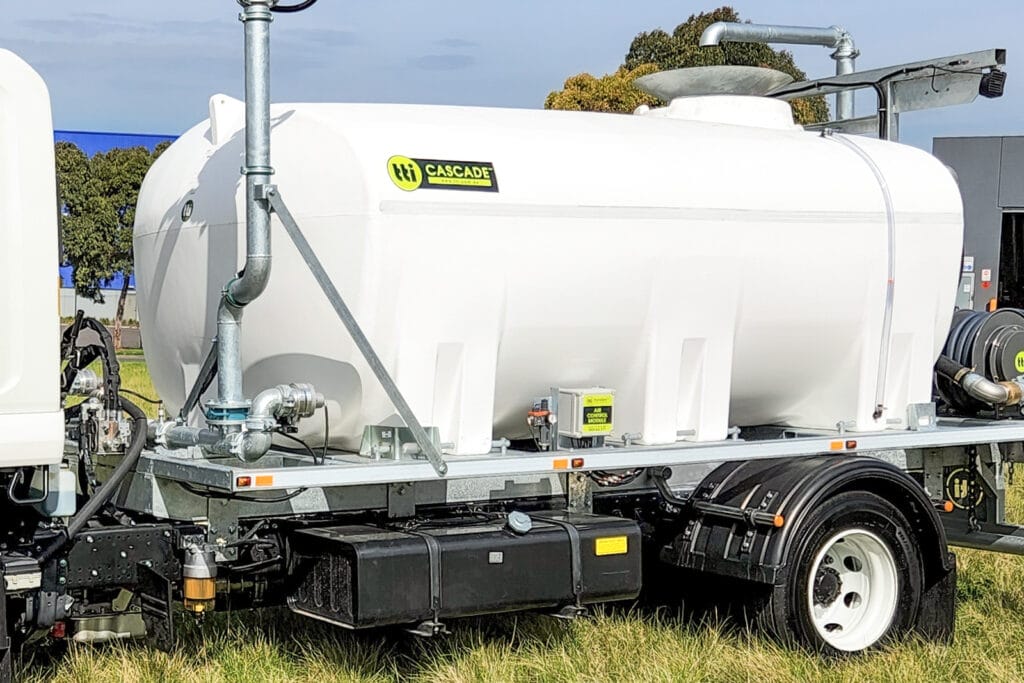

Heavy-Duty Baffled Tank
Thick & tough baffled poly tank complete<br> with a 25 Year Warranty

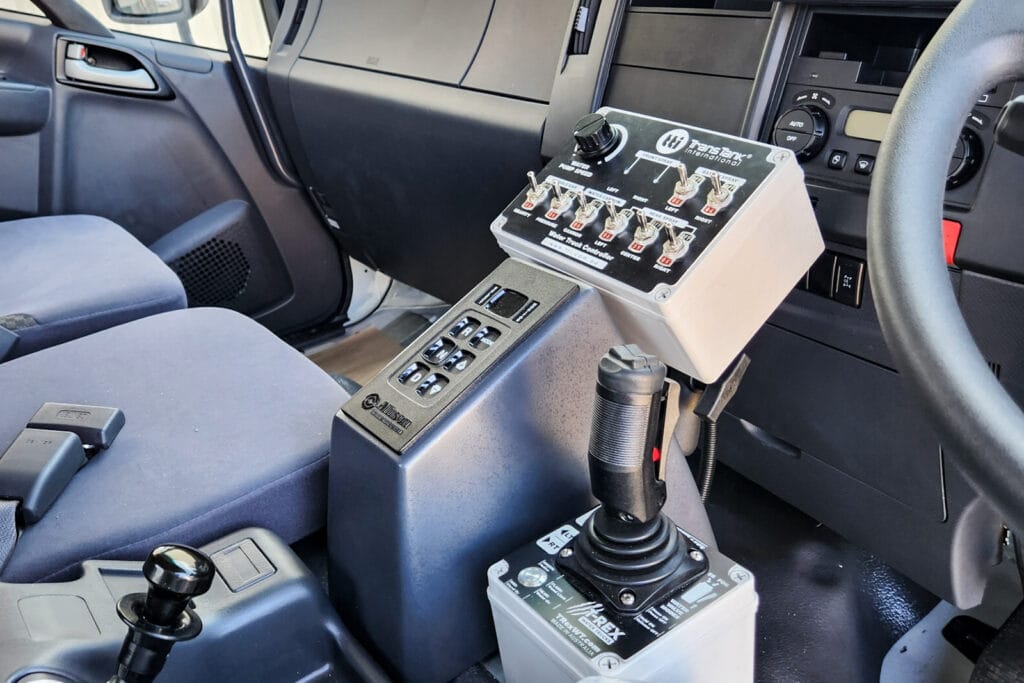

Easy-to-use in-cab controller
TTi's water trucks are fully operated from an in-cab controller

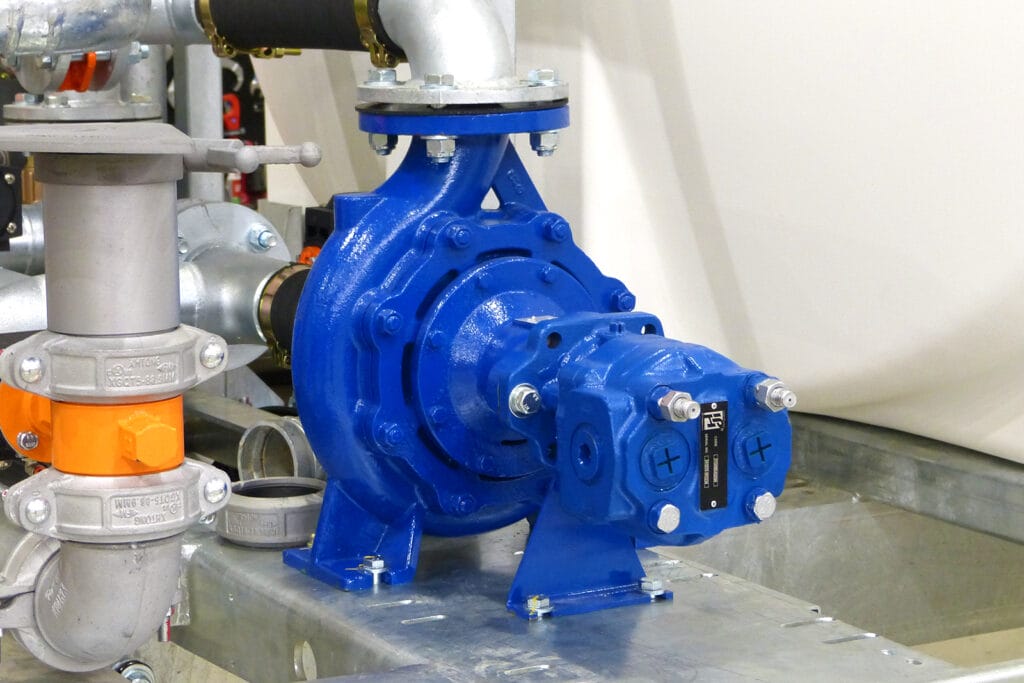

Italian-Made Rovatti Pump
High Performance, Cast-Iron 2200L/min, Italian-Made Pump
3 x Rear Spray Heads
Centre, left, right with individual on/off from controller
Hydraulic, Diesel or Petrol Options
Yanmar 10hp Engine, Honda Petrol or Hydraulic drive options

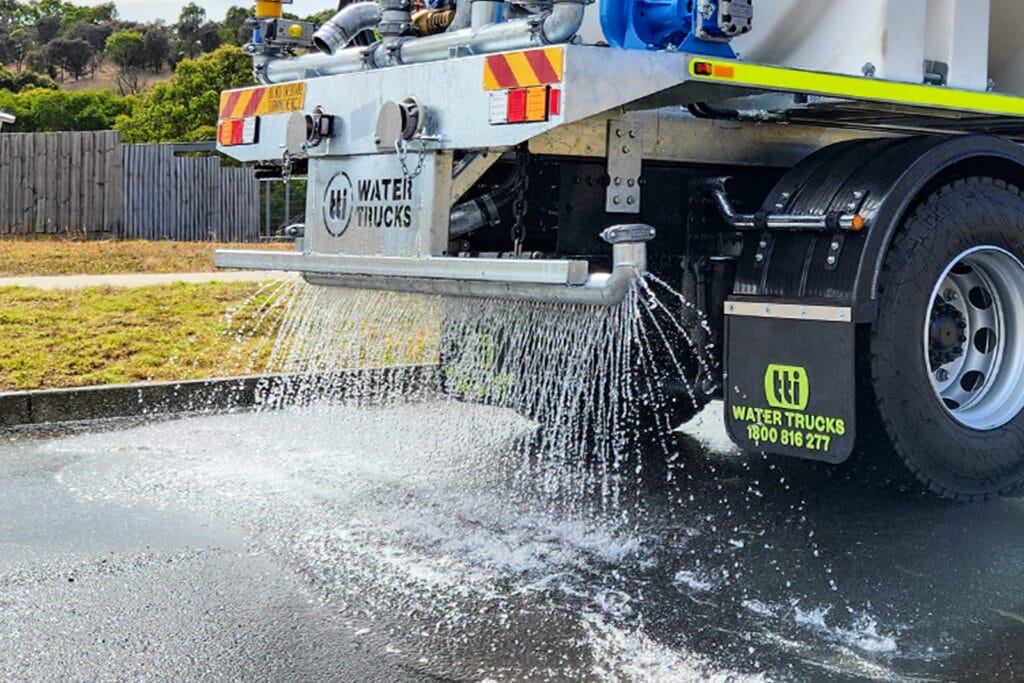

Pressurised and/or Gravity Dribble Bar
Featuring 3″ Pressurised and/or Gravity Dribble Bar's

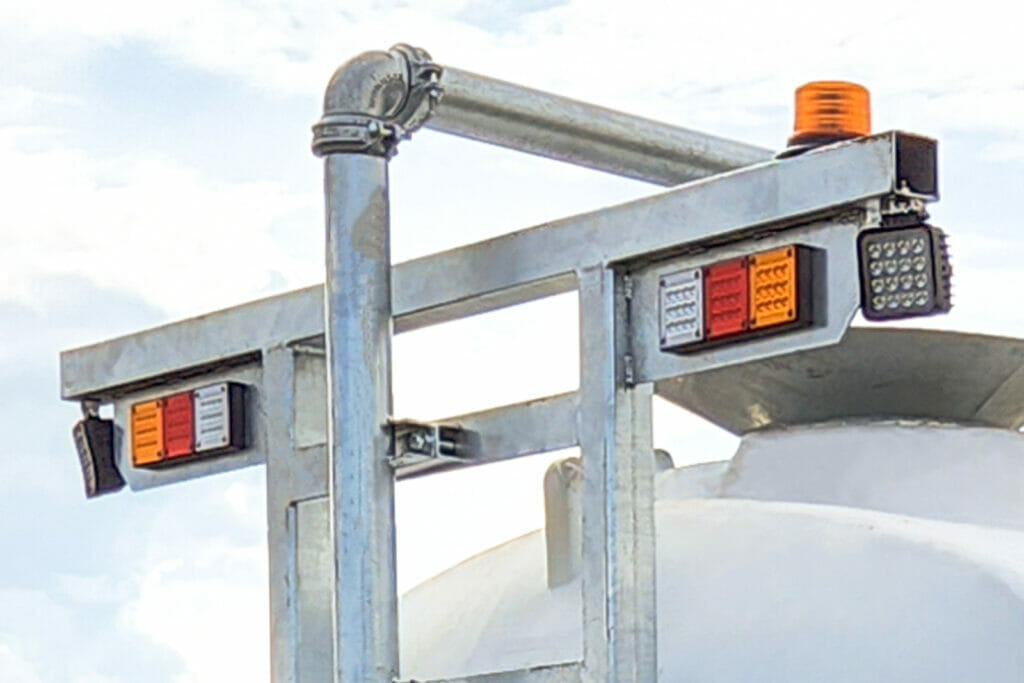

LED Work Lights
2x LED Rear Facing Work Lights & Flashing LED Beacon

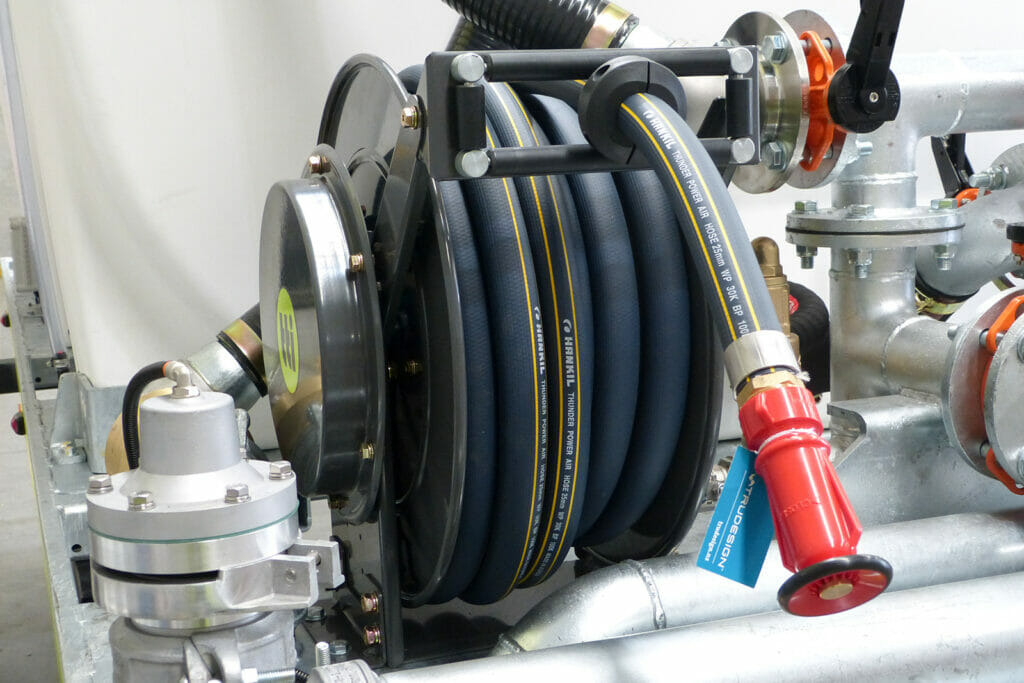

20m Spring Rewind Hose Reel
Heavy duty 20m Spring Rewind hose reel with twist type nozzle

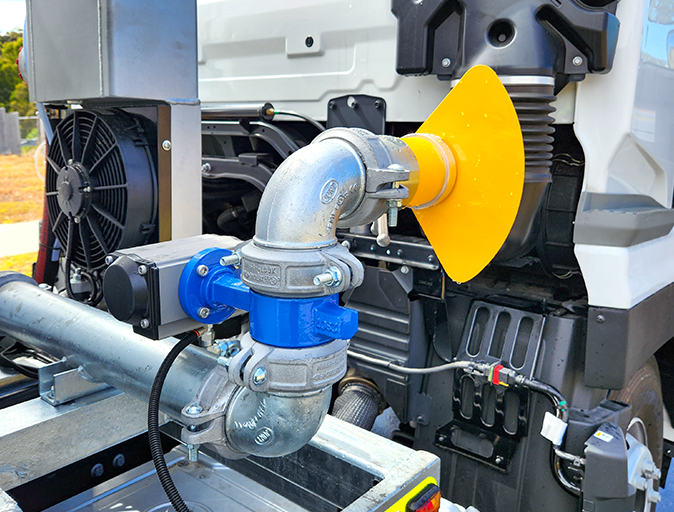

3” Electric Water Cannon
Batter Spray Heads

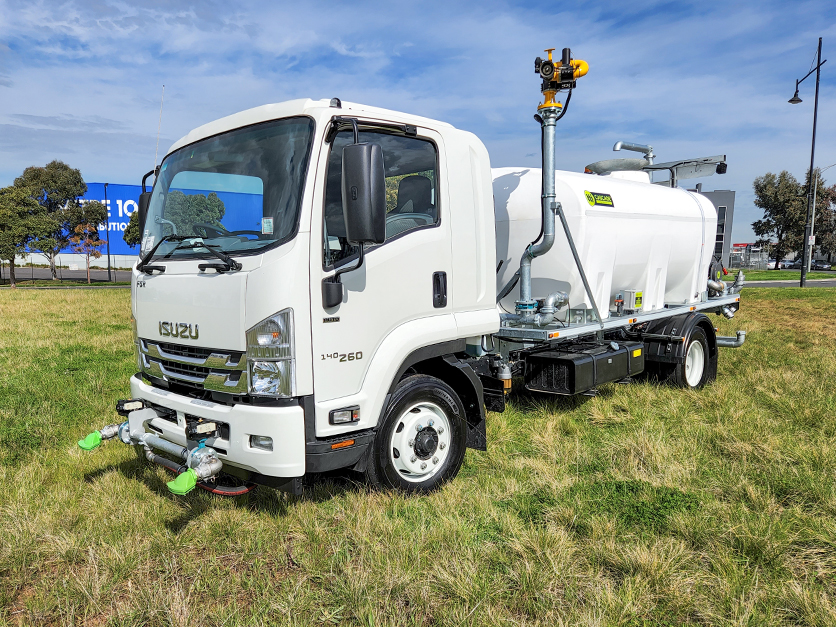

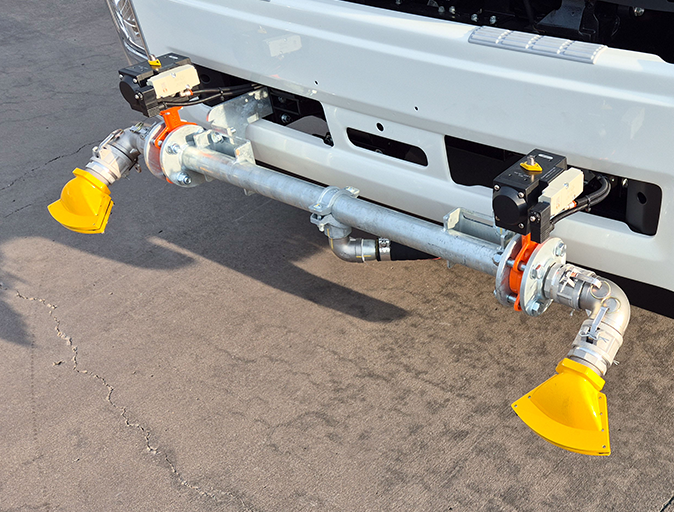

Front Spray Heads

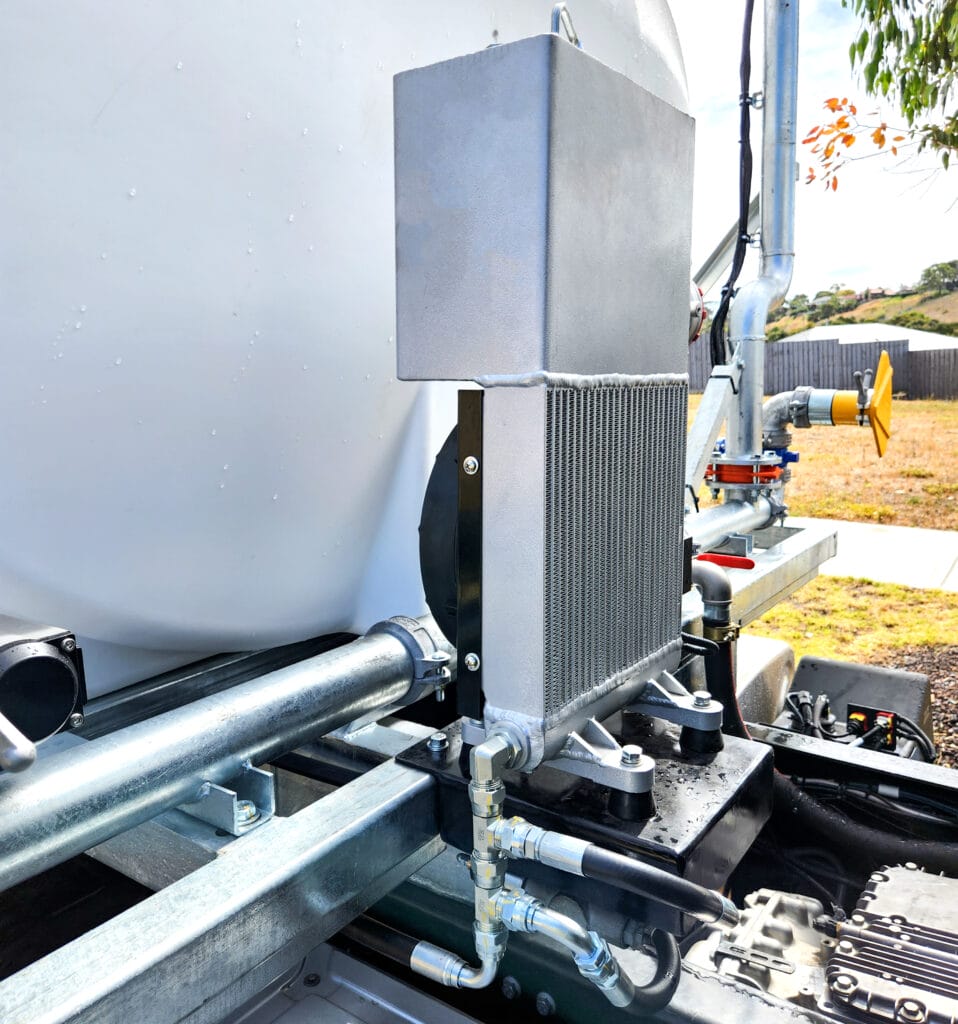

Dial-up Hydraulic System
2x Emergency Stop Buttons
Lockable Battery Isolator
GME TX4500 UHF

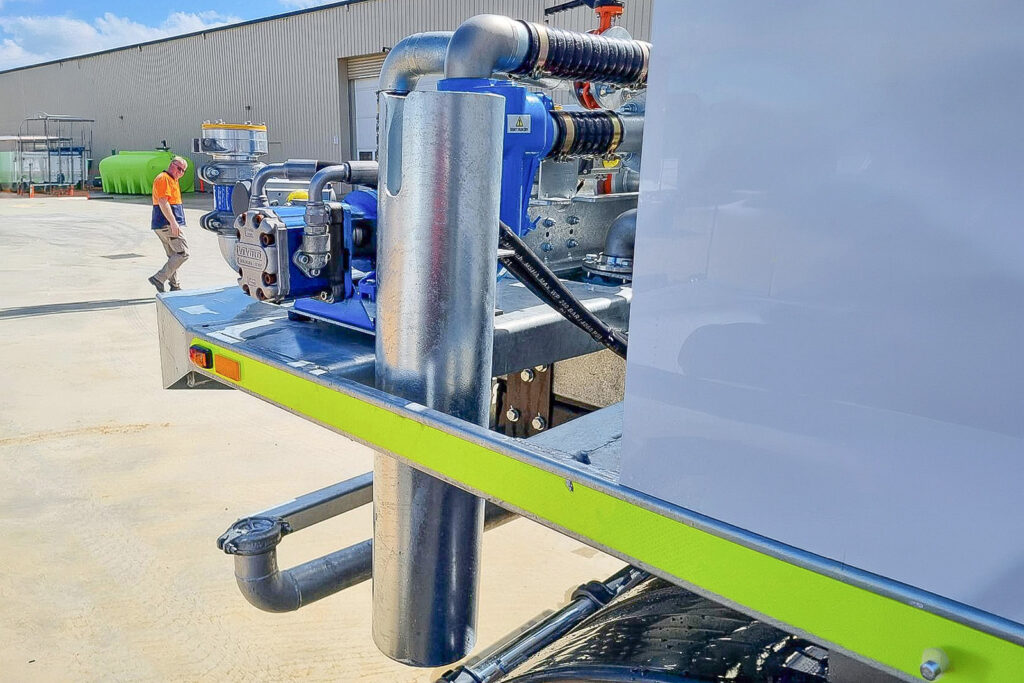

Hydrant Holder Bracket
Roof Rack With Rotating Beacons
Reverse Camera With Backing Alarm
Lockable Toolbox
Safety Pack
- Tank
- 8,000L UV-stabilised poly — rustproof, corrosion-resistant, 25-year warranty
- Dribble Bar
- 3" pressurized and/or gravity — on/off from controller
- Baffling
- LiquidLocker™ anti-surge ball baffling — standard fit on every unit
- Hose Reel
- 20m spring rewind with adjustable twist-type nozzle
- Chassis Frame
- Hot dip galvanised — engineer-approved with full mounting kit

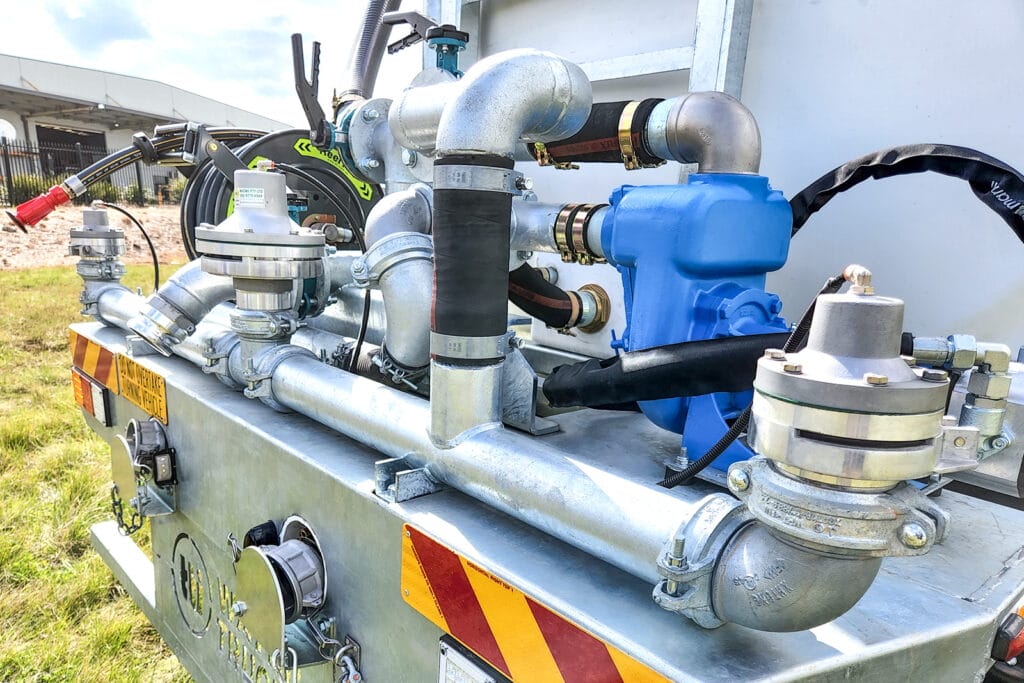

- Pipework
- 3" hot dip galvanised steel manifold with camlock fittings
- Drive Options
- Yanmar 10hp diesel, Honda petrol or hydraulic PTO drive
- Fill System
- Hydrant fill — regulation air-gap, 3" one-way valve connection
- Pump
- Italian-made Rovatti — 2,200L/min self-priming cast iron
- Suction Hose
- 2x 5m lengths stored between chassis rails
- Controller
- In-cab toggle-switch — plug-and-play wiring, full in-cab operation
- Lighting
- LED rear work lights, LED tail and number plate lights, flashing beacon
- Spray Heads
- 3x rear (centre, left, right) — individual on/off from controller
- Chassis Options
- HINO FM 2632 · ISUZU FVZ 240-300 · ISUZU FXZ 240-350
The 8,000l water truck is ideal for larger jobs that need a significant amount of water without the bulk of our very largest trucks. Think substantial civil construction projects, road maintenance, large-scale dust suppression, and general water cartage on bigger sites where efficiency is key.
For a 8,000 litre water truck, a poly tank offers several advantages over steel. Poly tanks are significantly lighter, rustproof, and less prone to cracking under pressure. They also don’t require the same intensive maintenance as steel tanks. You can find out more about these benefits in our poly advantage section.
Absolutely. We understand every job is different. You can customise your 8,000 litre water truck with various boom sprays, hose reels, fan sprays, dribble bars, or whatever specific spray configuration suits your application. Just tell us what you need it for, and we’ll help you tailor the setup.
The 8,000l water truck is typically best suited to medium-to-heavy duty cab chassis trucks with the appropriate Gross Vehicle Mass (GVM) and payload capacity. If you’re unsure about specific vehicle specs or GVM requirements, our team is happy to help you work out the perfect match.
It certainly is. Every TTi 8,000 litre water truck comes with our built-in LiquidLocker baffling system as standard. This system is designed to reduce water surge inside the tank, which significantly improves safety during braking, turning, and travel over uneven ground. It helps maintain vehicle stability on the road.
