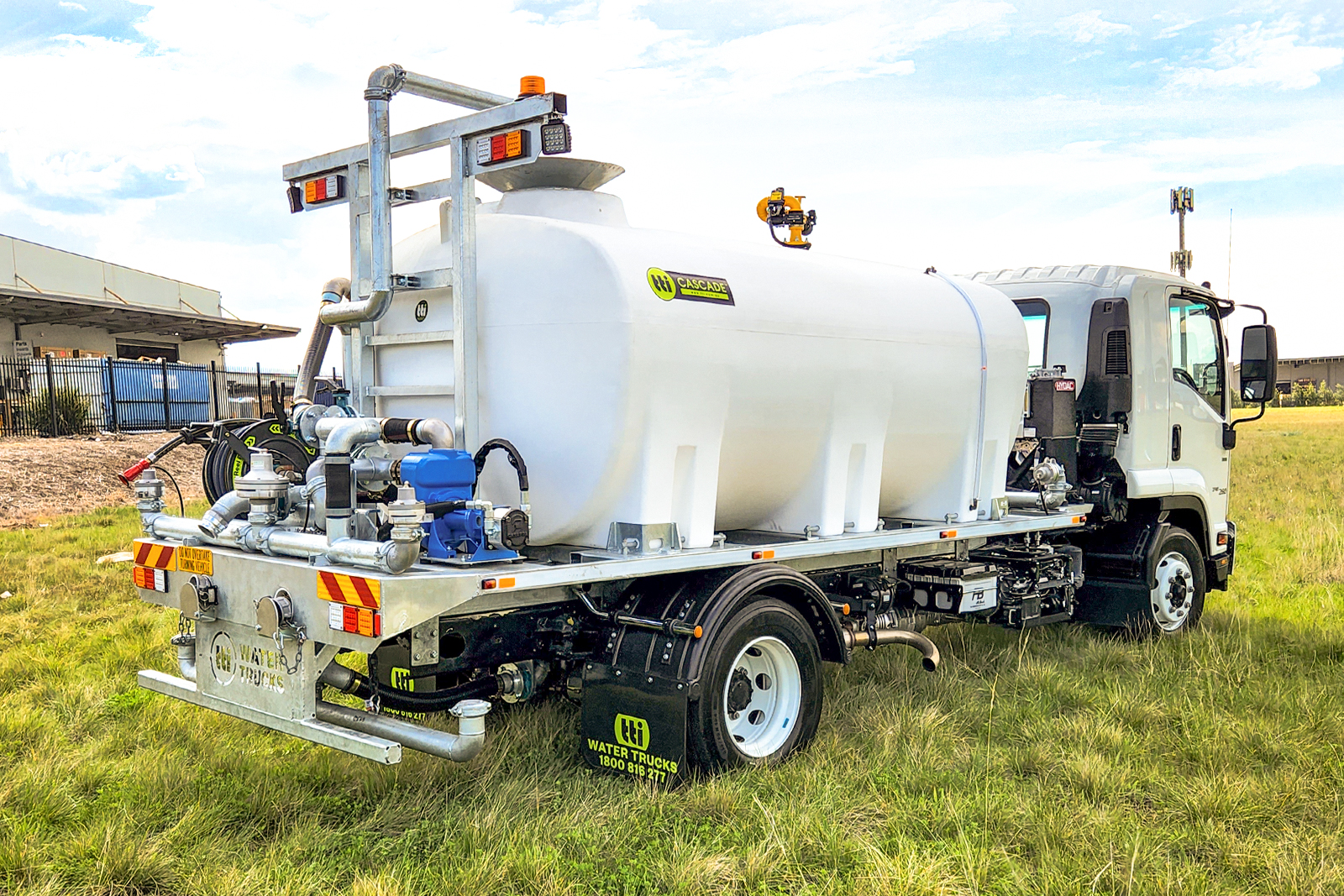

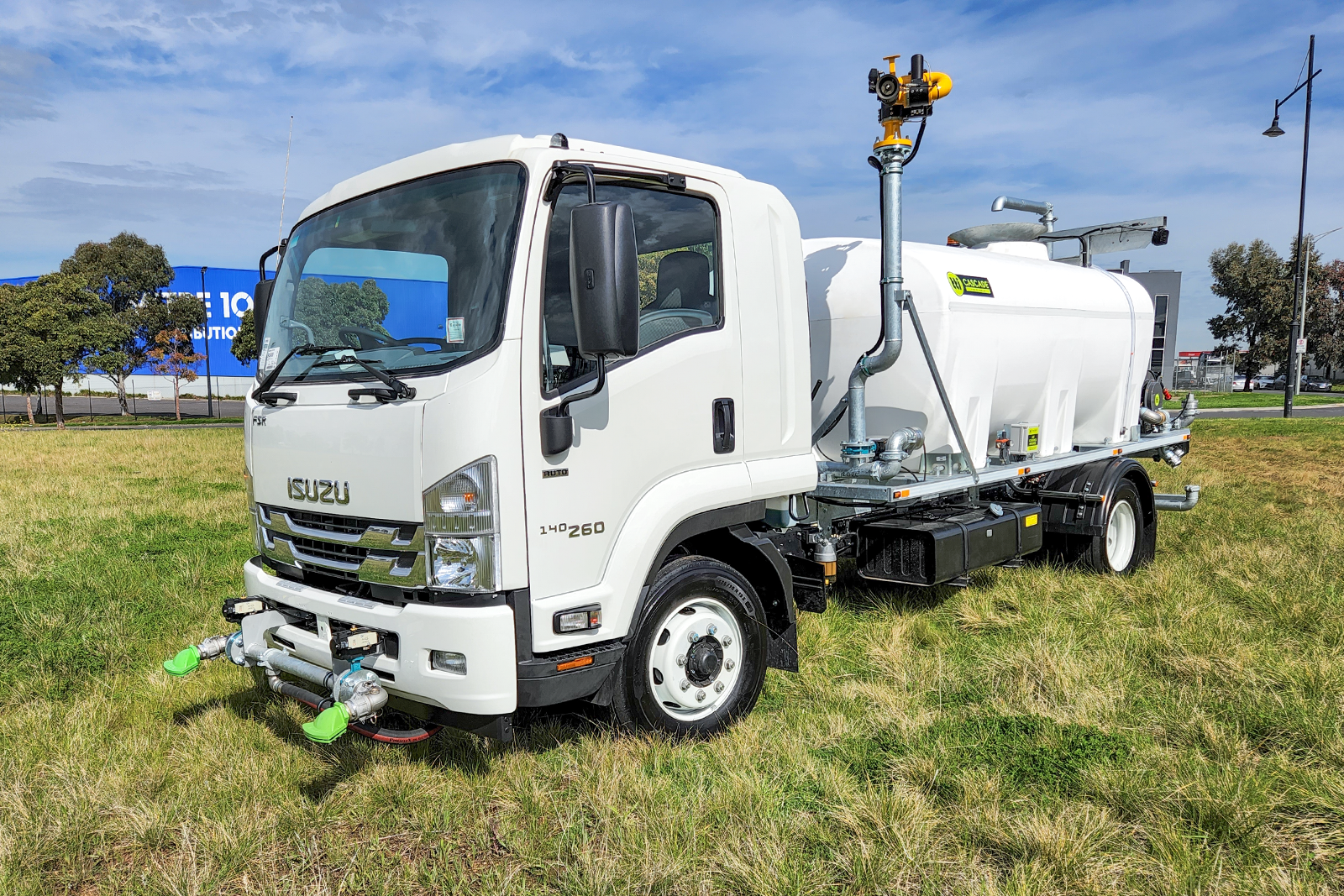

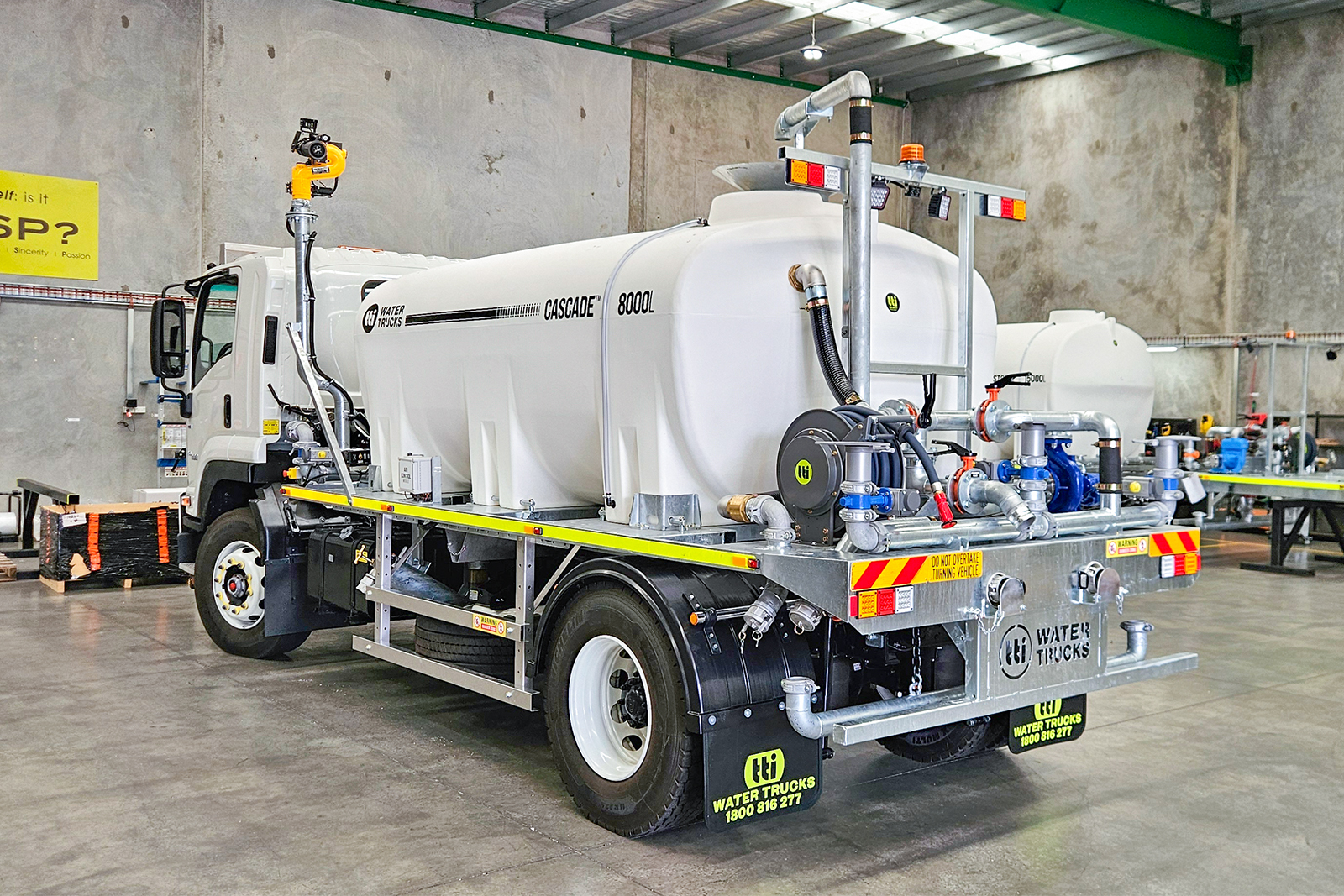

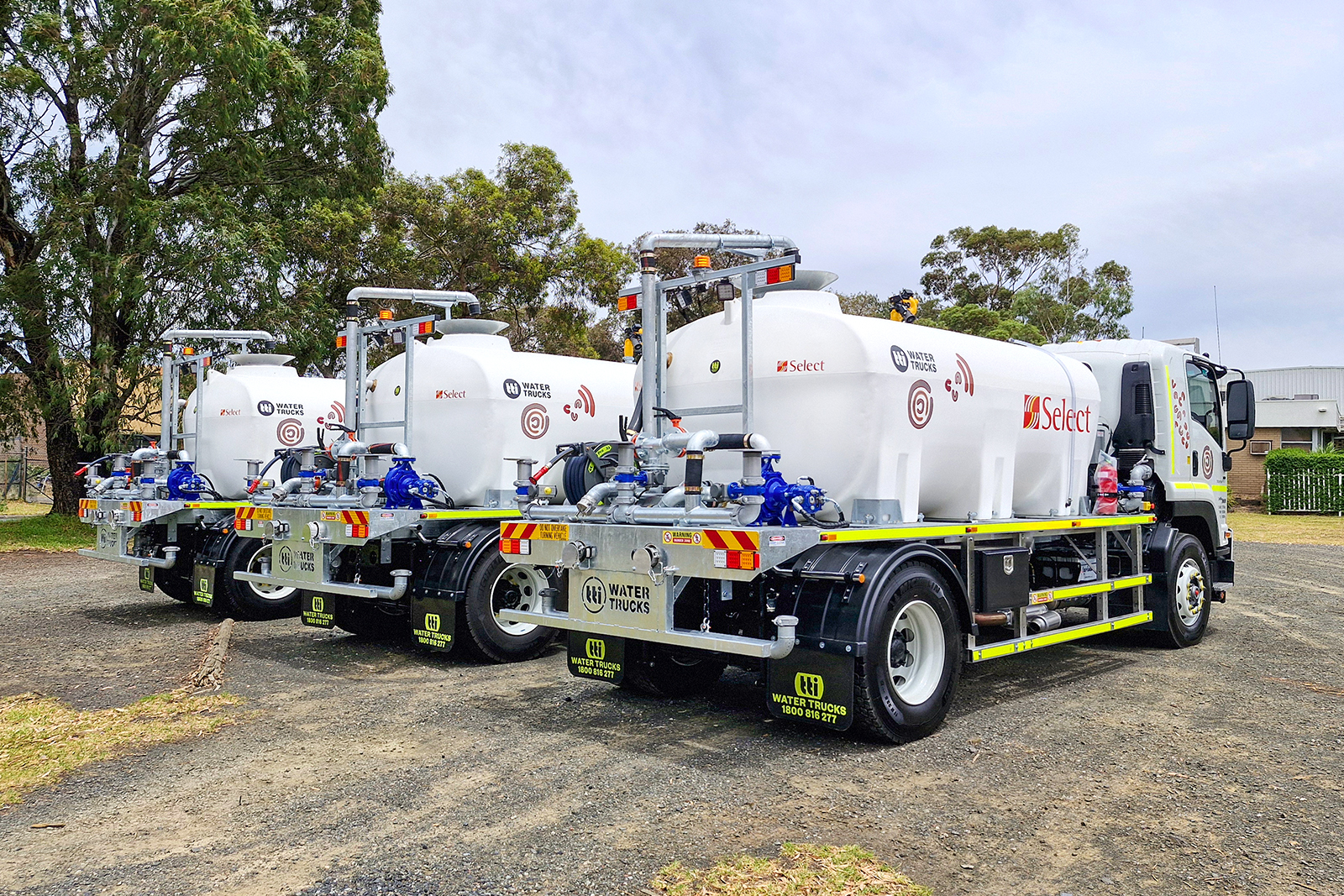

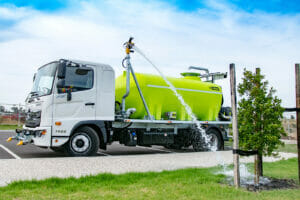

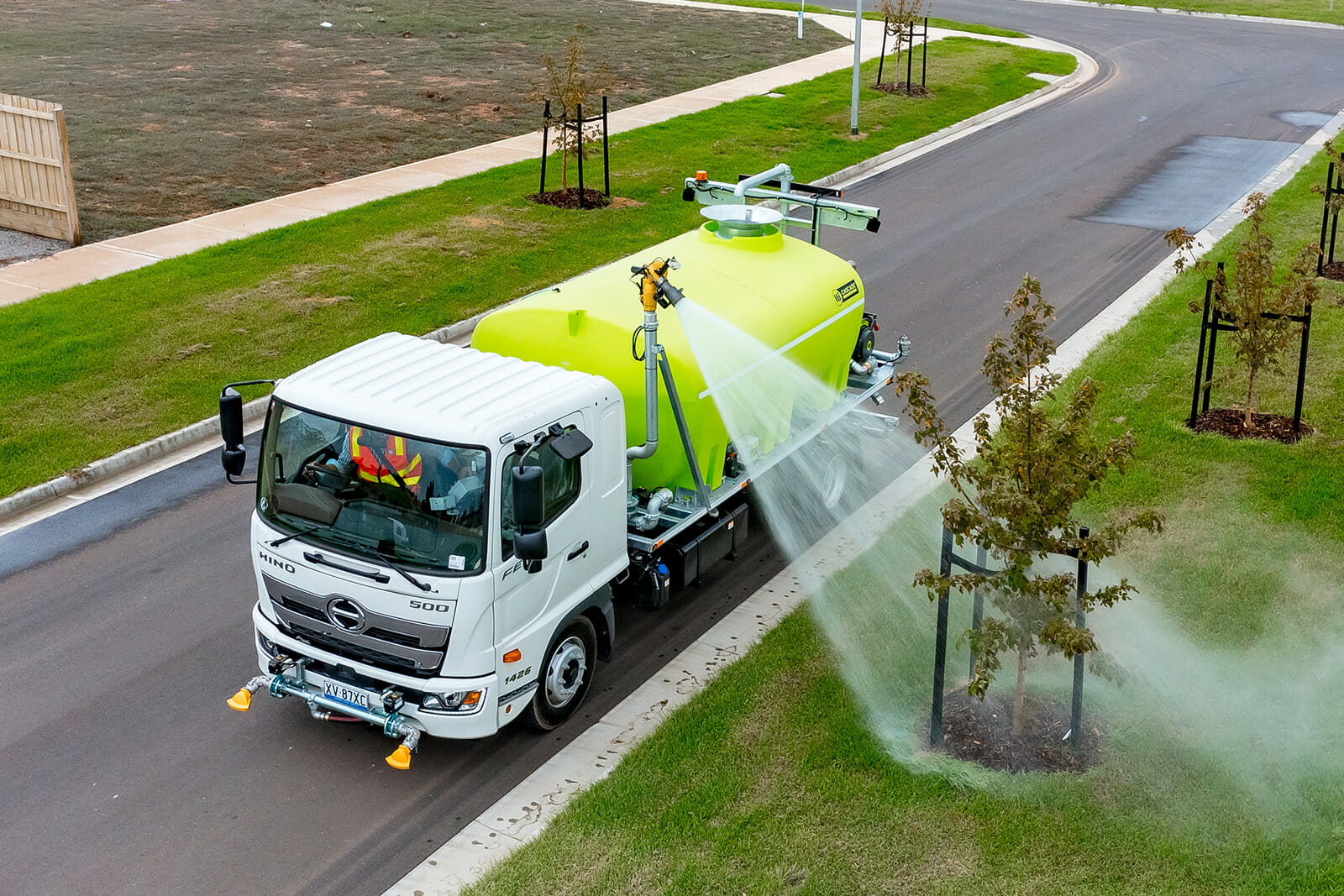

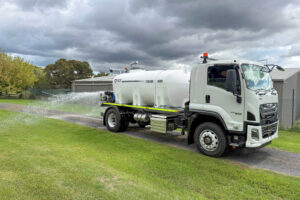

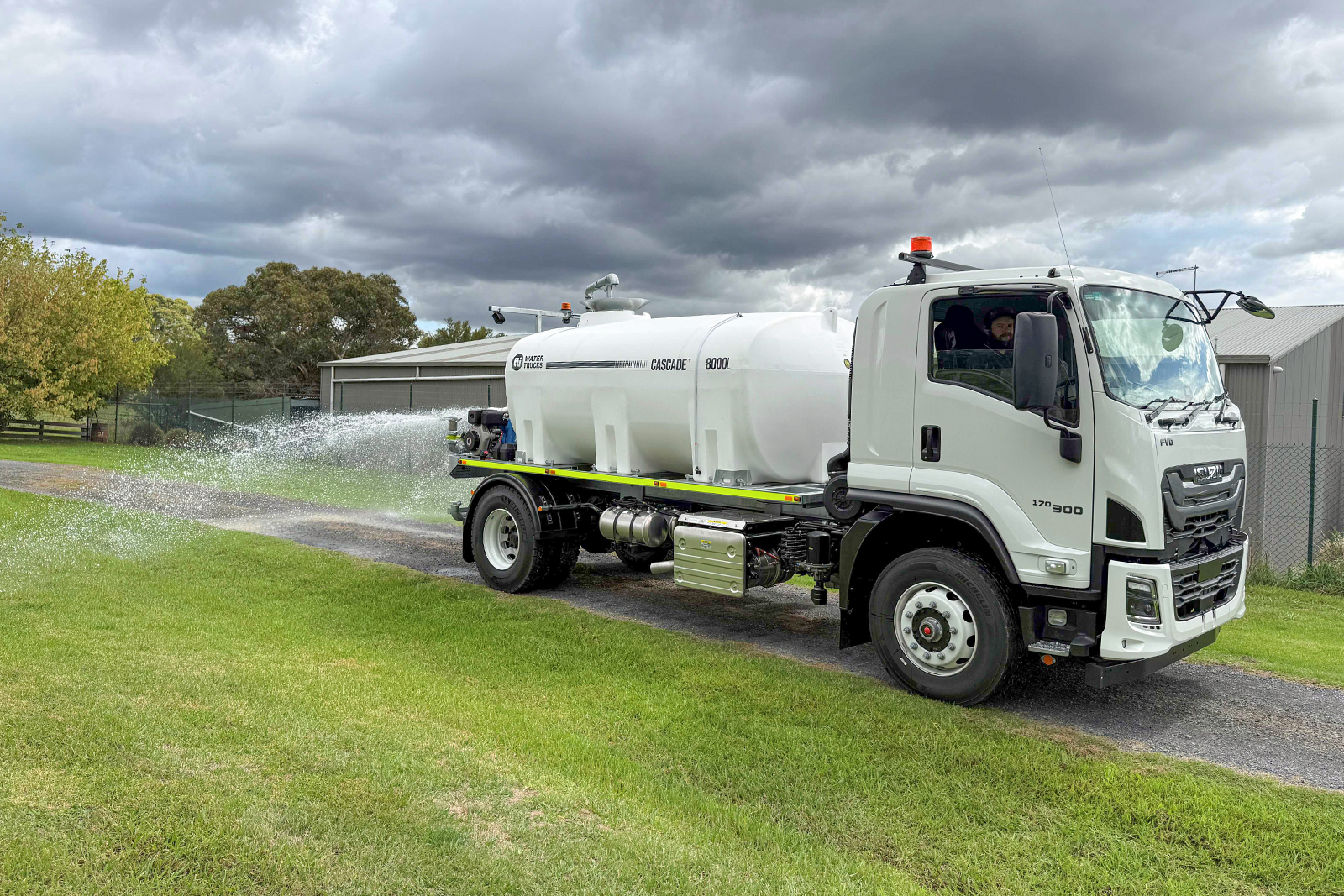

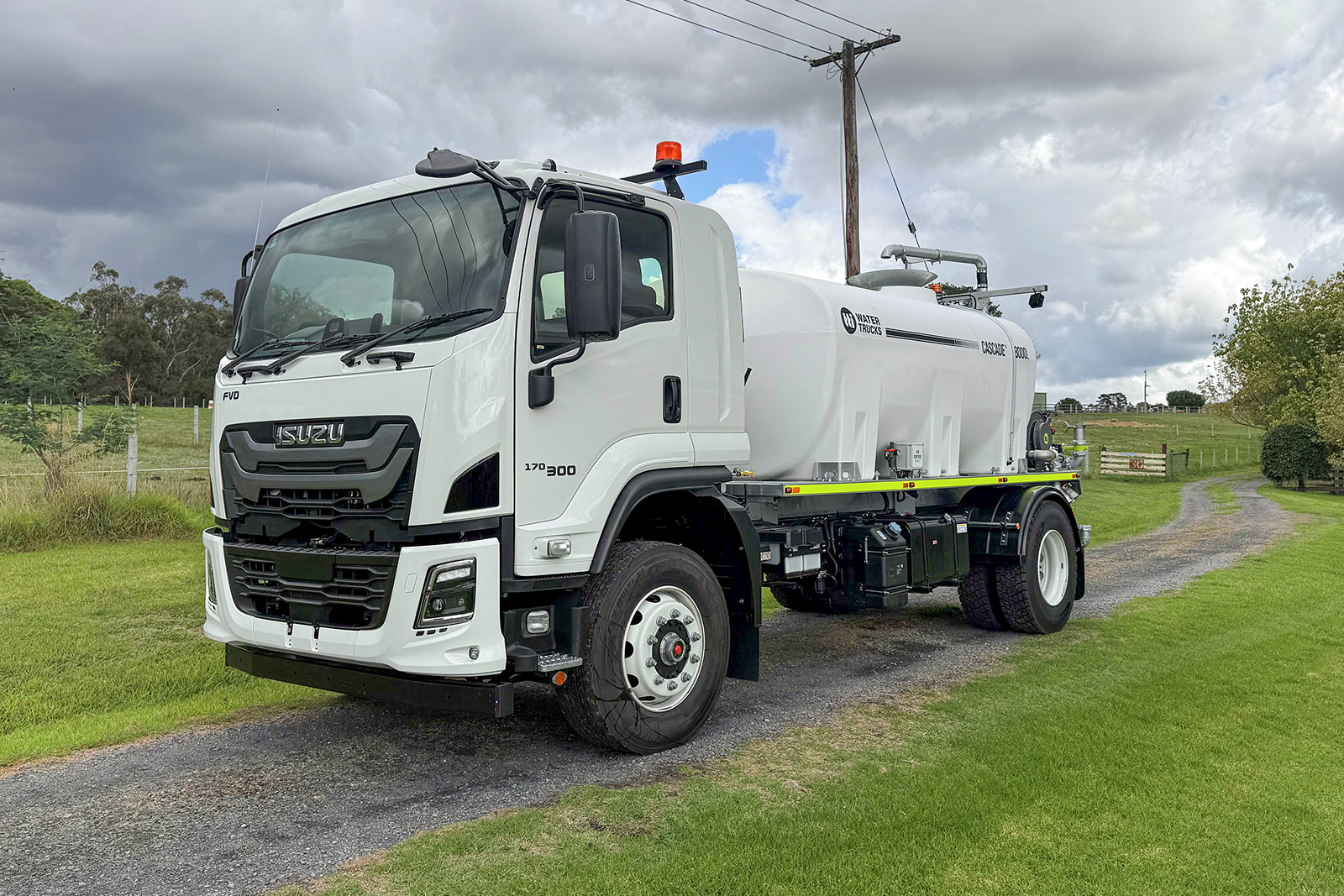

Cascade 8,000L

The Ultimate Compact Water Truck

KEY FEATURES

Heavy-Duty Baffled Tank

Thick & tough baffled poly tank complete
with a 25 Year Warranty

Easy-to-use in-cab controller

TTi's water trucks are fully operated from an in-cab controller

Italian-Made Rovatti Pump

High Performance, Cast-Iron 2200L/min, Italian-Made Pump

3 x Rear Spray Heads

Centre, left, right with individual on/off from controller

Hydraulic, Diesel or Petrol Options

Yanmar 10hp Engine, Honda Petrol or Hydraulic drive options

Pressurised and/or Gravity Dribble Bar

Featuring 3″ Pressurised and/or Gravity Dribble Bar's

LED Work Lights

2x LED Rear Facing Work Lights & Flashing LED Beacon

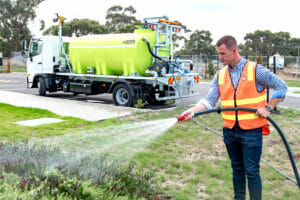

20m Spring Rewind Hose Reel

Heavy duty 20m Spring Rewind hose reel with twist type nozzle

UPGRADE: SPRAY OPTIONS

3” Electric Water Cannon

Batter Spray Heads

Front Spray Heads

Upgrade: Truck OPTIONS

Dial-up Hydraulic System

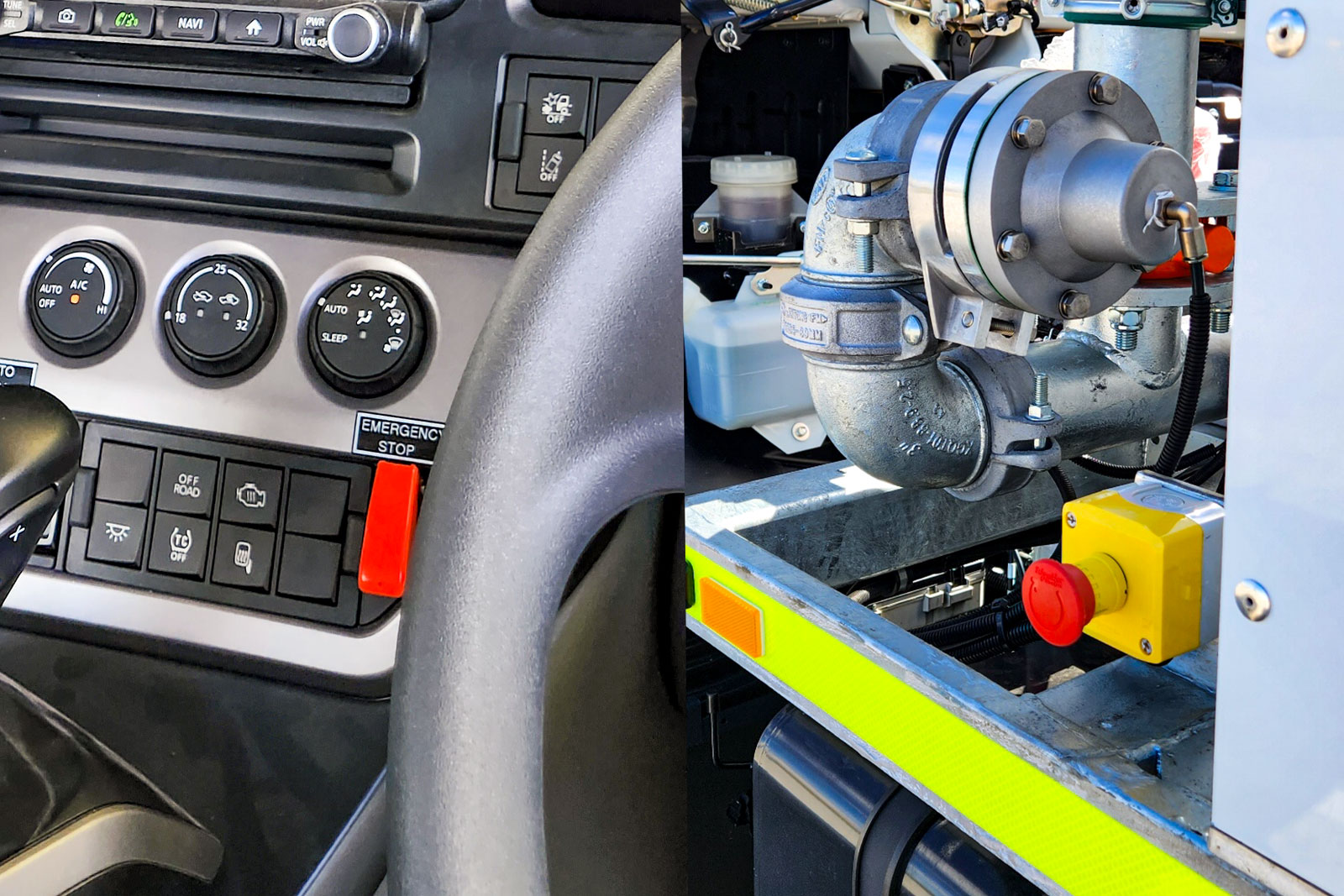

2x Emergency Stop Buttons

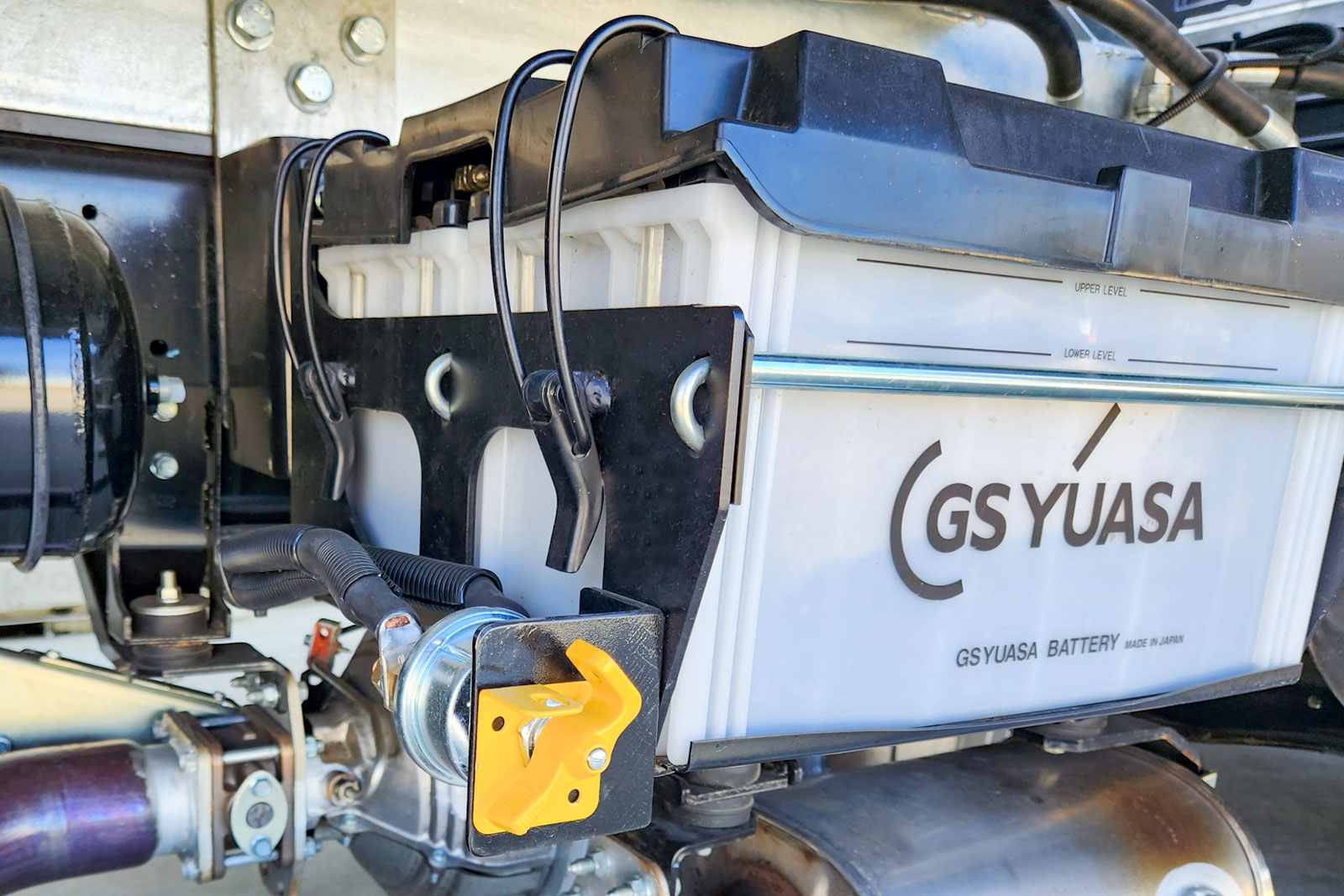

Lockable Battery Isolator

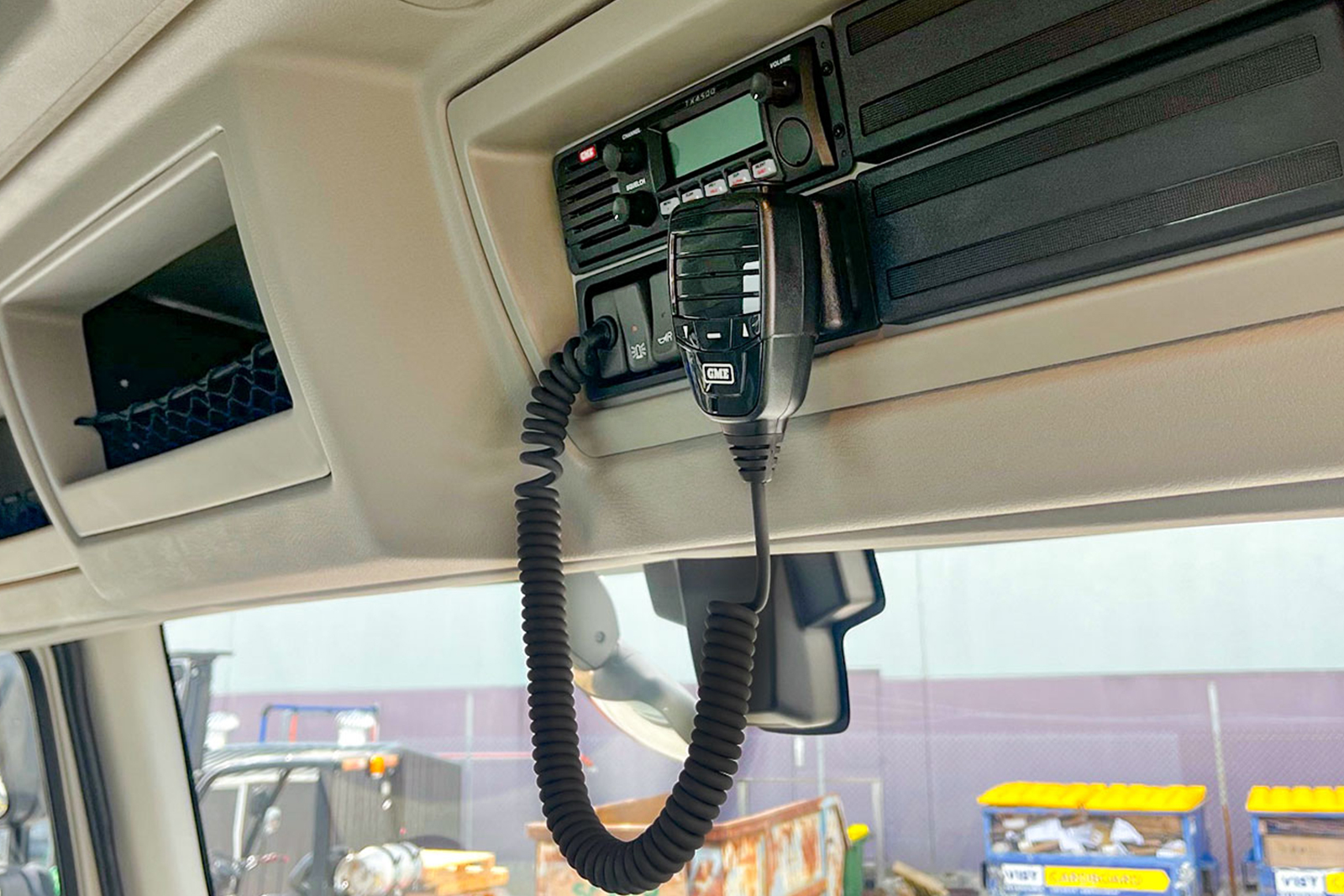

GME TX4500 UHF

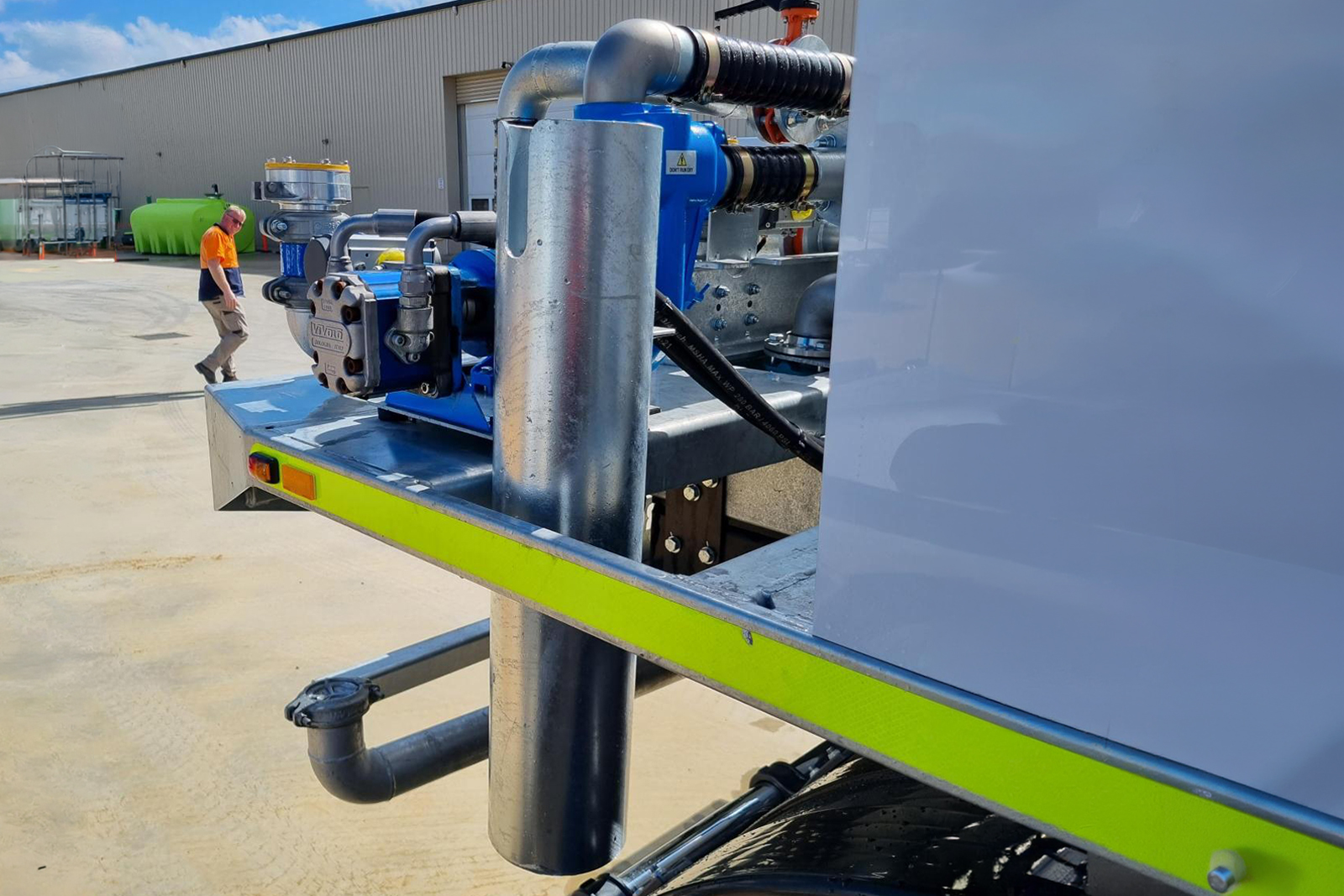

Hydrant Holder Bracket

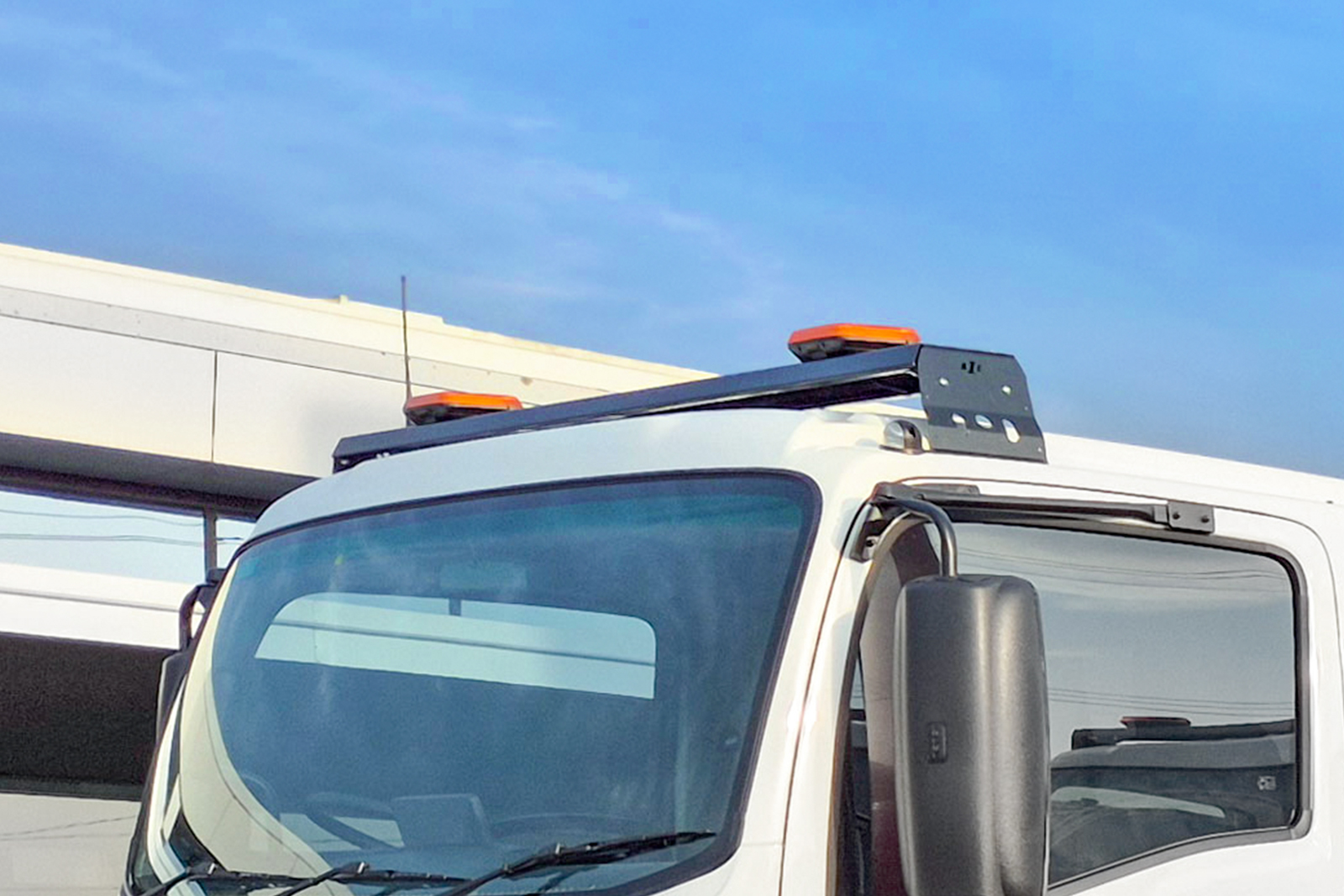

Roof Rack With Rotating Beacons

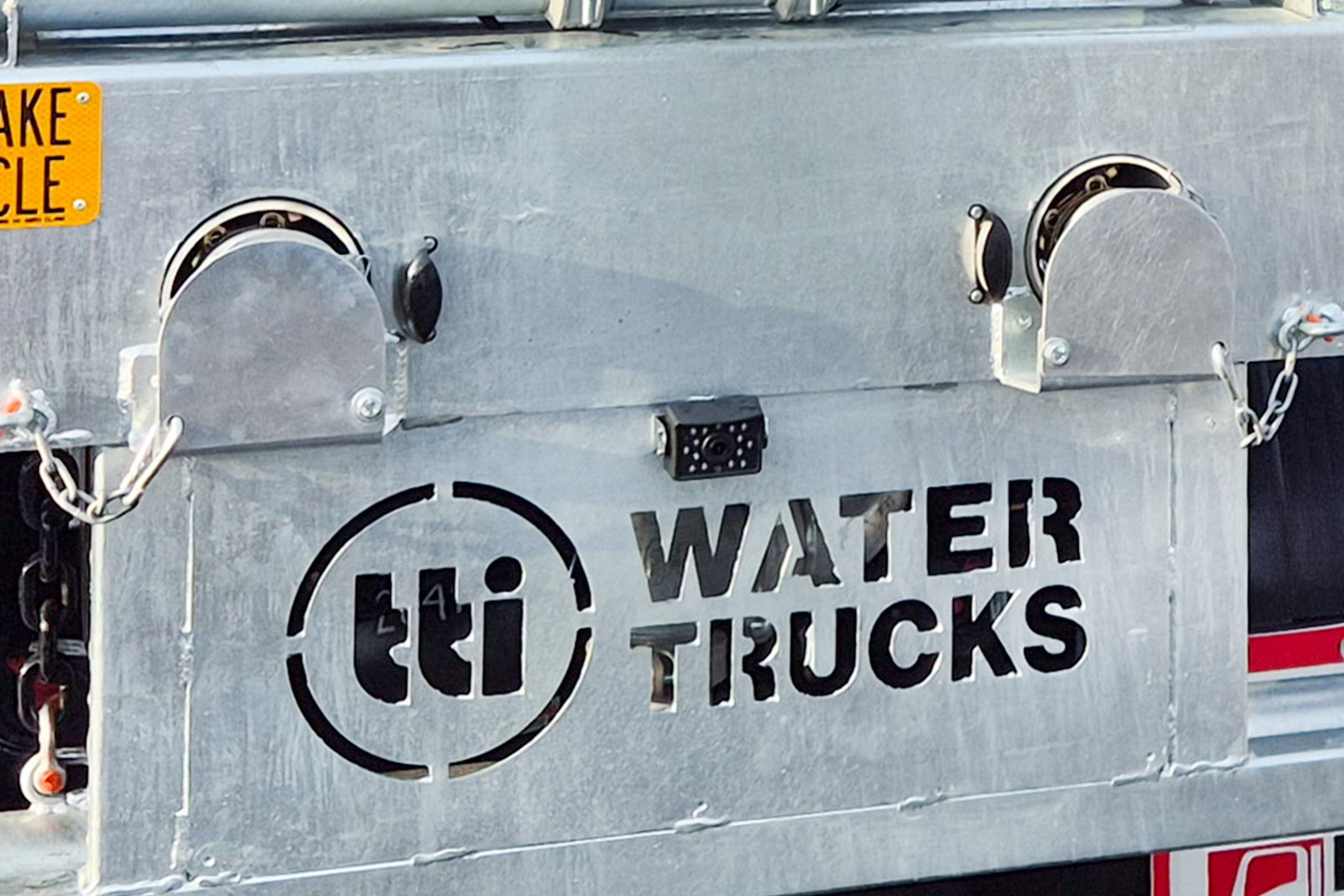

Reverse Camera With Backing Alarm

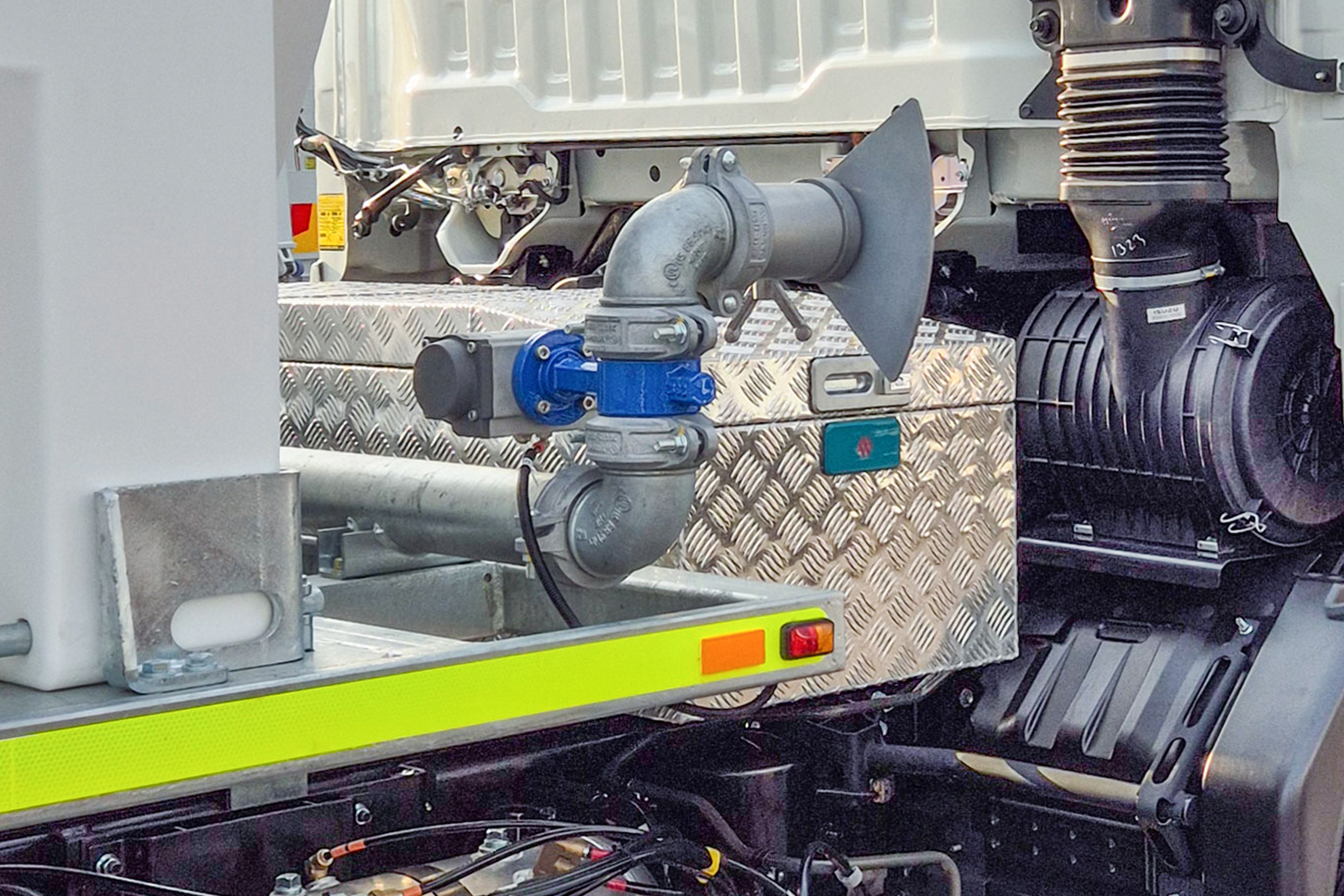

Lockable Toolbox

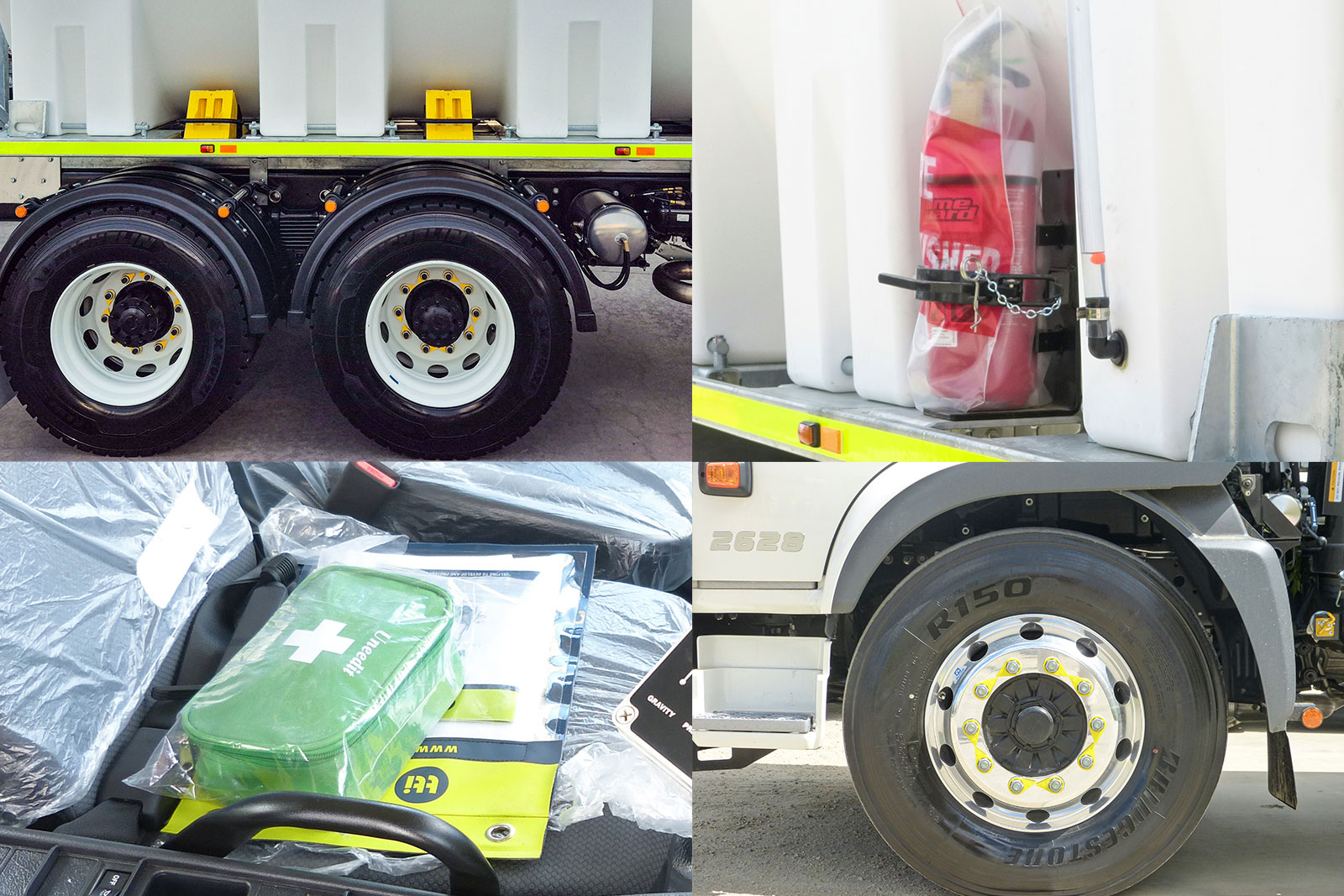

Safety Pack

FULL FEATURES

Durable Poly Tank Construction – Rotomoulded UV-stabilised poly tank with rust and corrosion resistance, complete with a 25-year warranty
Hot Dip Galvanised Chassis Frame - Engineer Approved Chassis Frame with mounting kit
2200L/min, Self Priming, Italian-Made Rovatti High Performance Cast-Iron Pump
Toggle-switch Controller - Complete with in cab mount, plug & play wiring
3" Dribble Bar Gravity or Pump Pressure operation, on/off from controller

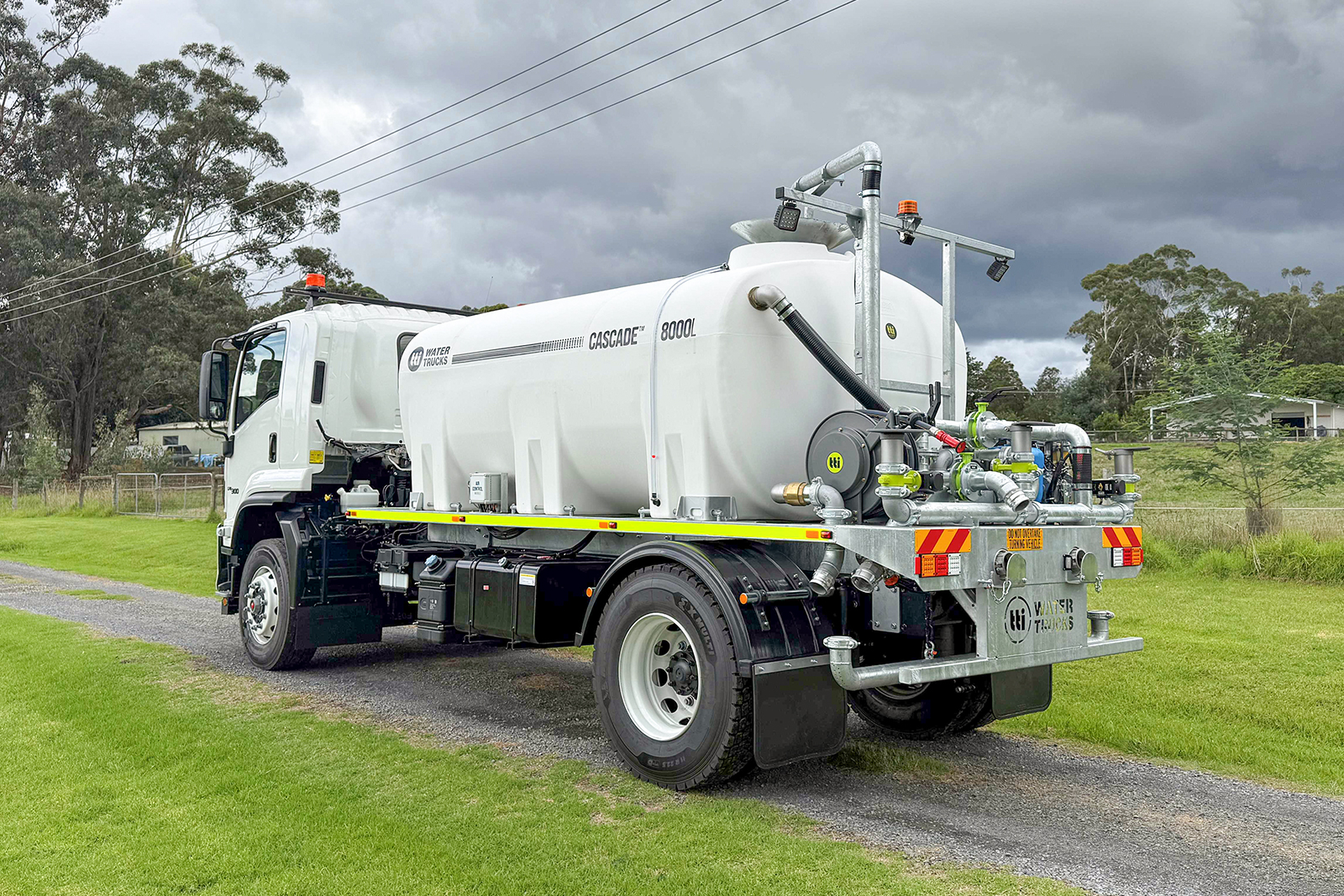

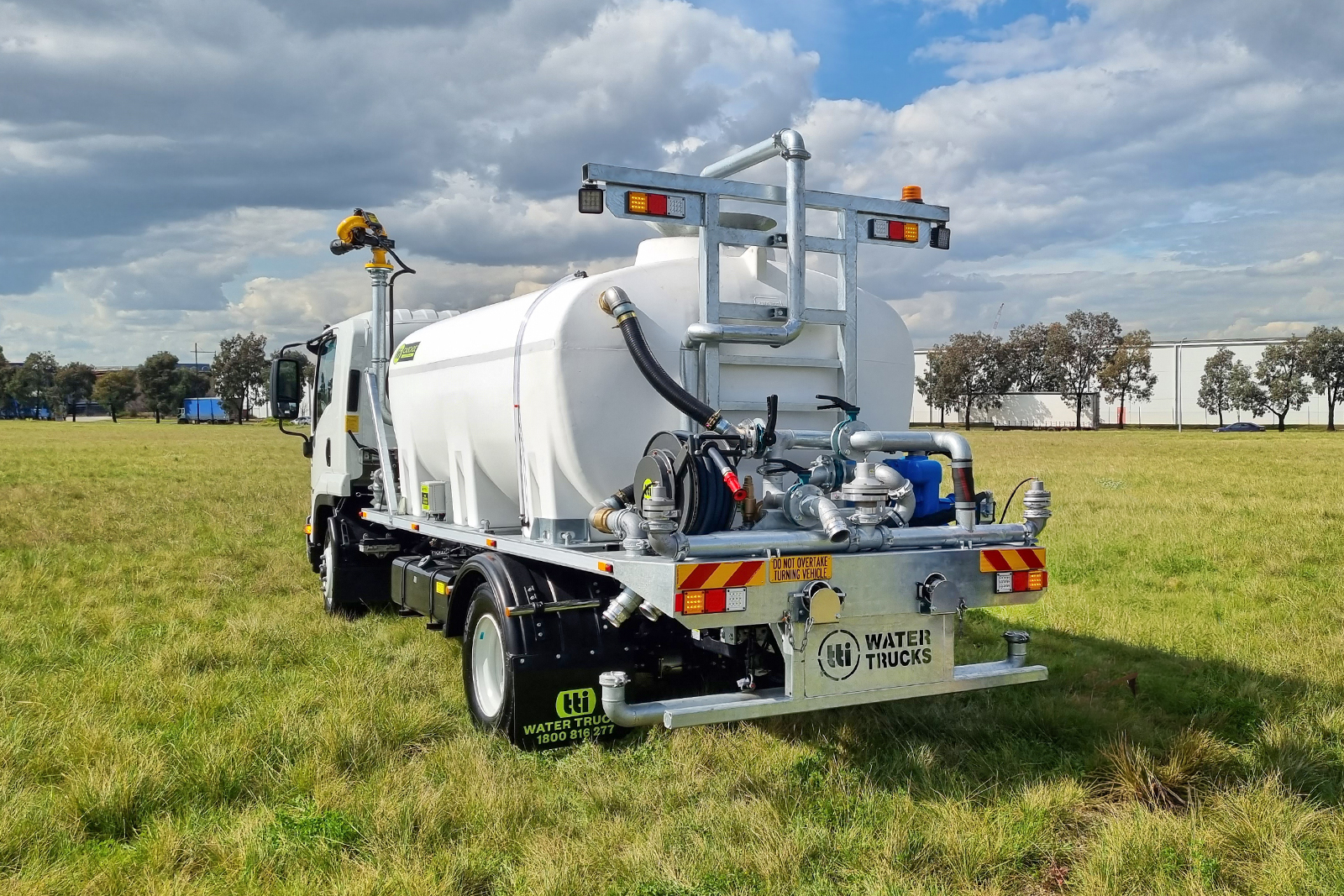

3" Steel Manifold Pipework, hot dip galvanised. 3" dedicated suction and discharge ports with camlock fittings
Hydrant Fill System with regulation air-gap, 3" one-way valve connection point
Optimal Balance and Agility – 8000L capacity with compact frame for improved manoeuvrability
Yanmar 10hp Engine, Honda Petrol or Hydraulic drive options

Rear bumper incorporating a taillight board with LED tail and number plate lights

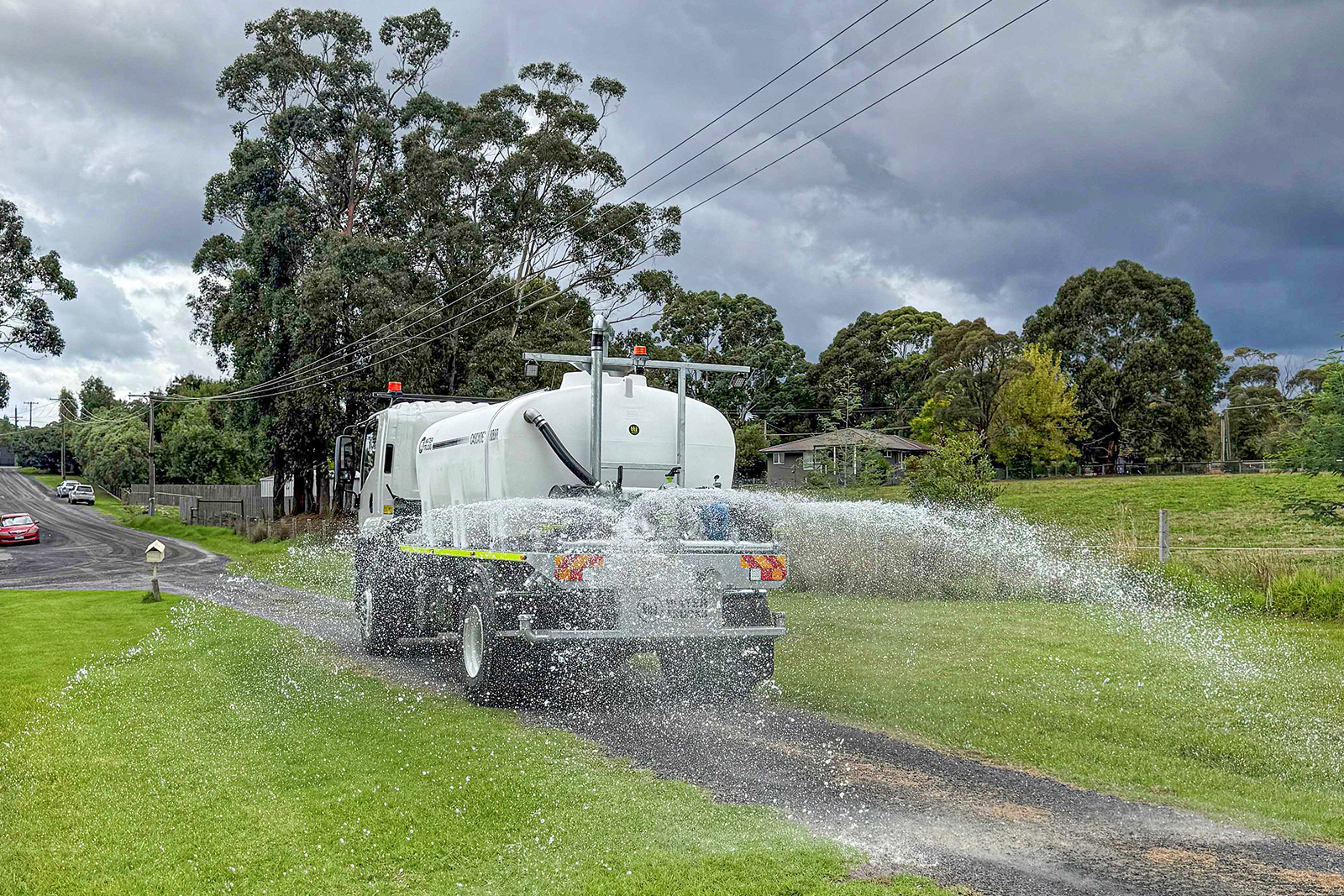

3x Rear Spray Heads - Centre, left, right with individual on/off from controller

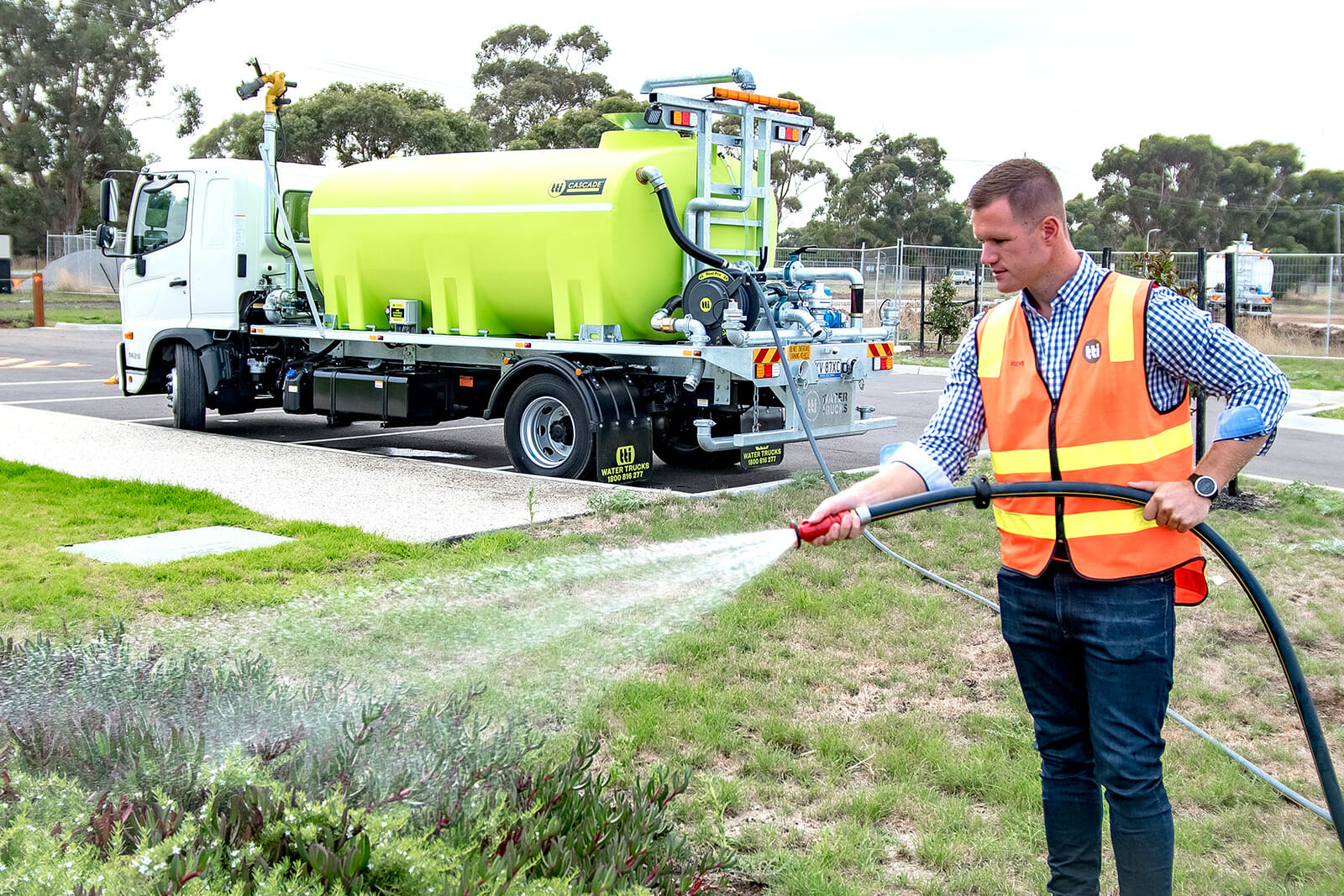

20m Spring Rewind Hose Reel - Complete with adjustable nozzle
Funnel Lid for overhead standpipe filling
Suction hose storage between chassis rails - 2x 5m lengths, 3"

WHY CHOSSE TTI POLY?

Safety

No surge, equipped with the LiquidLocker Baffle System

More Payload

Handles chassis movement and twisting without cracking

Savings

Lower purchase cost, running cost savings as lighter designs reduces fuel consumption and wear on the vehicle

Environmental & Longevity

Proven durability with no reported failures over 25 years, reducing the need for replacement and minimizing waste

Frequently Asked Questions

  • What kind of jobs is the 8000l water truck best suited to?

    The 8000l water truck is ideal for larger jobs that need a significant amount of water without the bulk of our very largest trucks. Think substantial civil construction projects, road maintenance, large-scale dust suppression, and general water cartage on bigger sites where efficiency is key.

  • How does the poly tank compare to a steel tank for this size?

    For a 8000 litre water truck, a poly tank offers several advantages over steel. Poly tanks are significantly lighter, rustproof, and less prone to cracking under pressure. They also don’t require the same intensive maintenance as steel tanks. You can find out more about these benefits in our poly advantage section.



  • Can I customise the spray setup on my 8000L water truck?

    Absolutely. We understand every job is different. You can customise your 8000 litre water truck with various boom sprays, hose reels, fan sprays, dribble bars, or whatever specific spray configuration suits your application. Just tell us what you need it for, and we’ll help you tailor the setup.

  • What type of vehicle is needed to carry a 8000L water truck?

    The 8000l water truck is typically best suited to medium-to-heavy duty cab chassis trucks with the appropriate Gross Vehicle Mass (GVM) and payload capacity. If you’re unsure about specific vehicle specs or GVM requirements, our team is happy to help you work out the perfect match.

  • Is the tank baffled for road safety?

    It certainly is. Every TTi 8000 litre water truck comes with our built-in LiquidLocker baffling system as standard. This system is designed to reduce water surge inside the tank, which significantly improves safety during braking, turning, and travel over uneven ground. It helps maintain vehicle stability on the road.



  • What kind of jobs is the 8000l water truck best suited to?

    The 8000l water truck is ideal for larger jobs that need a significant amount of water without the bulk of our very largest trucks. Think substantial civil construction projects, road maintenance, large-scale dust suppression, and general water cartage on bigger sites where efficiency is key.

  • How does the poly tank compare to a steel tank for this size?

    For a 8000 litre water truck, a poly tank offers several advantages over steel. Poly tanks are significantly lighter, rustproof, and less prone to cracking under pressure. They also don’t require the same intensive maintenance as steel tanks. You can find out more about these benefits in our poly advantage section.



  • Can I customise the spray setup on my 8000L water truck?

    Absolutely. We understand every job is different. You can customise your 8000 litre water truck with various boom sprays, hose reels, fan sprays, dribble bars, or whatever specific spray configuration suits your application. Just tell us what you need it for, and we’ll help you tailor the setup.

  • What type of vehicle is needed to carry a 8000L water truck?

    The 8000l water truck is typically best suited to medium-to-heavy duty cab chassis trucks with the appropriate Gross Vehicle Mass (GVM) and payload capacity. If you’re unsure about specific vehicle specs or GVM requirements, our team is happy to help you work out the perfect match.

  • Is the tank baffled for road safety?

    It certainly is. Every TTi 8000 litre water truck comes with our built-in LiquidLocker baffling system as standard. This system is designed to reduce water surge inside the tank, which significantly improves safety during braking, turning, and travel over uneven ground. It helps maintain vehicle stability on the road.
